Output Voltage Trim
Parallel Current Sharing
Over Temperature Protection
Input Under Voltage Protection
Output Over Current / Over Voltage / Short Circuit Protection

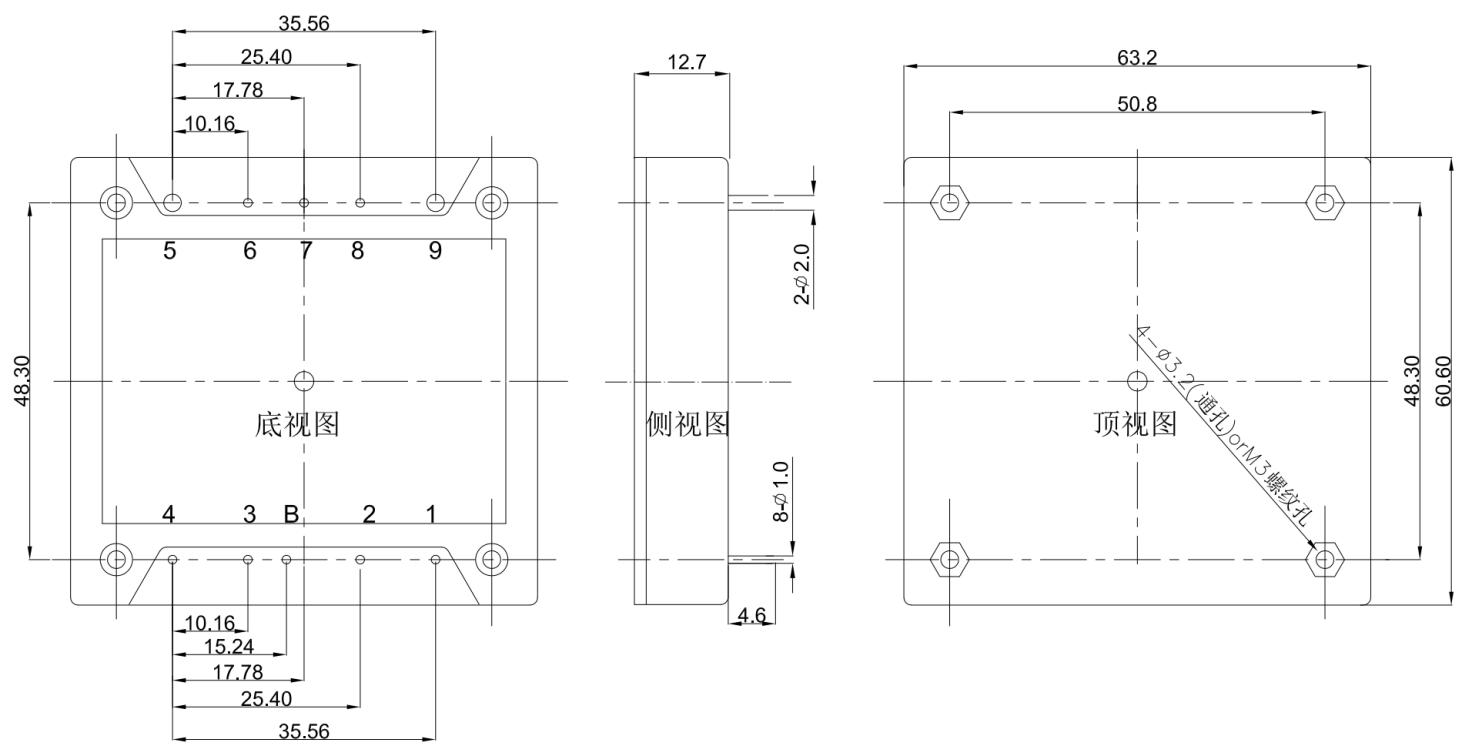

Notes:
Baseplate material: Aluminum substrate + plastic housing
Mechanical tolerance: x.x ± 0.5 mm, x.xx ± 0.25 mm
Pin diameter: Pins 1-3, 5-7: 1.0 mm diameter; Pins 4, 8: 1.5 mm diameter
| Product Series | Package Size (mm) |
Power (W) |
Input Voltage | Output Voltage (Vdc) |
Maximum Output Current (A) |
Efficiency (%) |
Product Model | Specification Download |
|---|---|---|---|---|---|---|---|---|

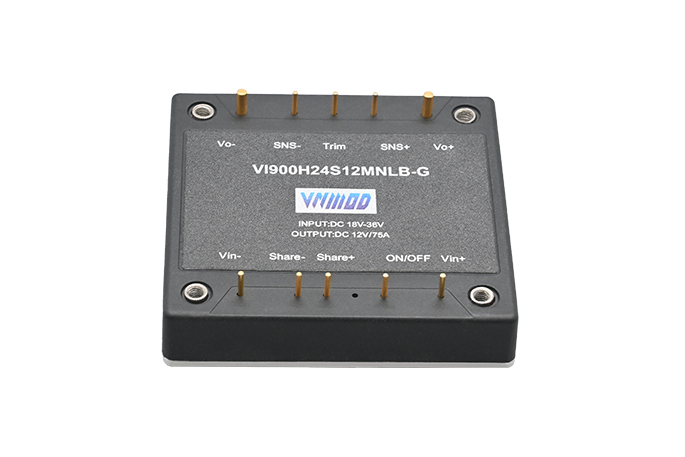

| Ruggedized DC-DC | 1/2 Brick | 900 | 18-36 | 12 | 75 | 92 | VI900H24S12xNLB‑G |
