Isolation Voltage：3000Vdc
Output Voltage Trim
Parallel Current Sharing
Over Temperature Protection
Input Under / Over Voltage Protection
Output Over Current / Over Voltage / Short Circuit / Constant Current Protection

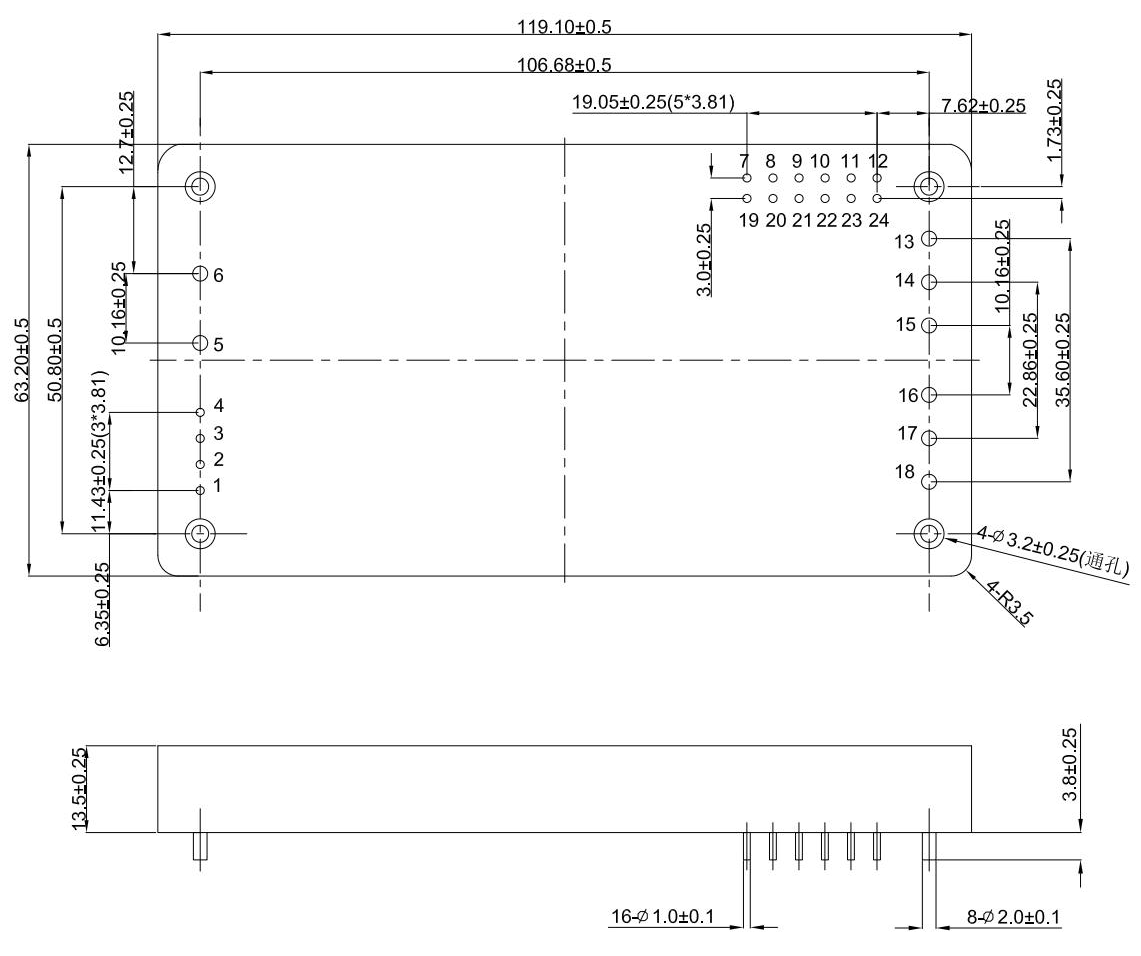

| Product Series | Package Size (mm) |
Power (W) |
Input voltage | Output voltage (Vdc) |
Maximum output current (A) |
efficiency (%) |
Product Model | Specification Download |
|---|---|---|---|---|---|---|---|---|

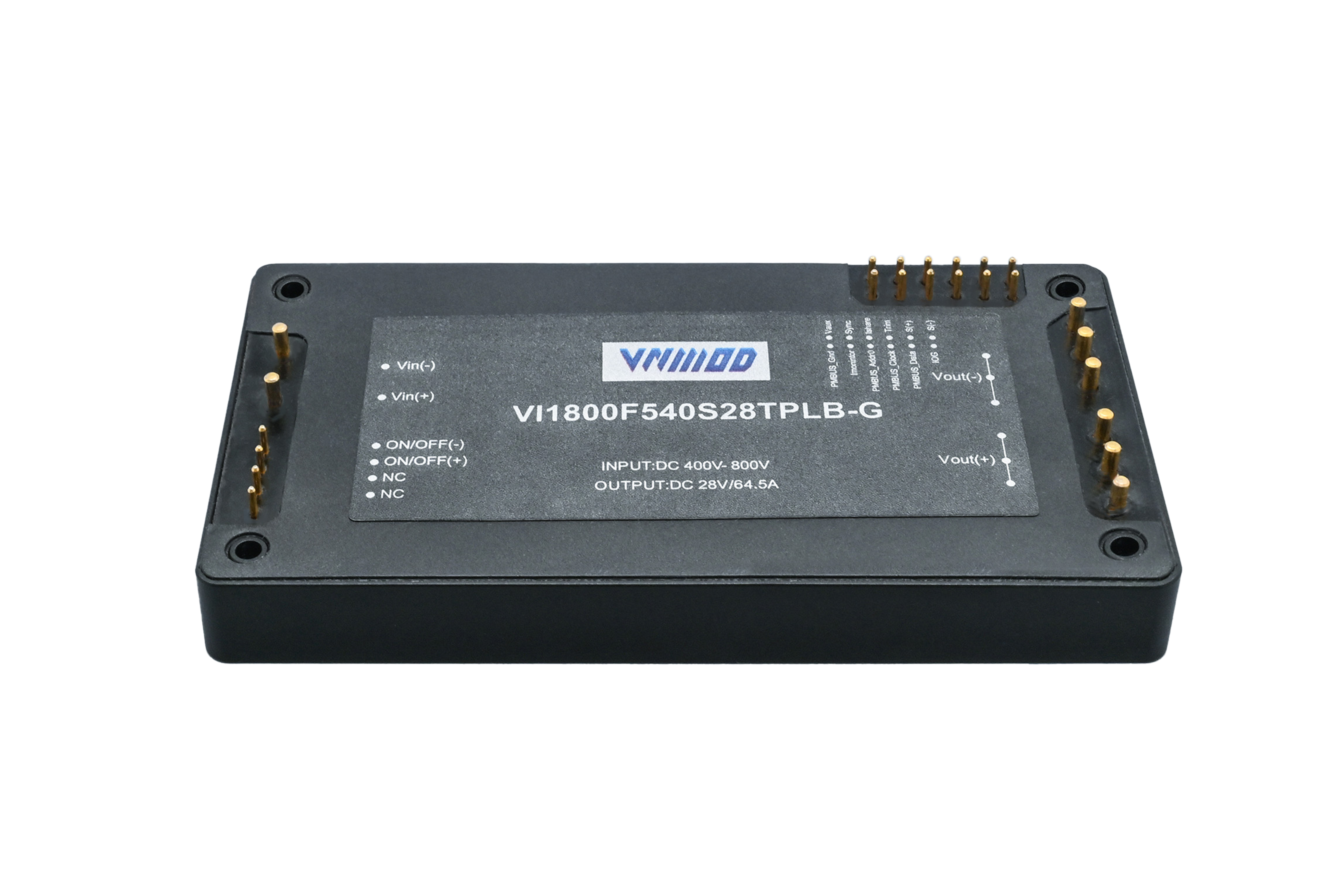

| Ruggedized DC-DC | Full Brick | 1800 | 400-800 | 28 | 64.3 | 94.5 | VI1800F540S28xPLB-G |
