Isolation Voltage：2000 Vac
Output Voltage Trim
Enable/Disable Control
Over Temperature Protection
Input Under Voltage / Over Voltage Protection
Output Over Current / Over Voltage / Short Circuit Protection

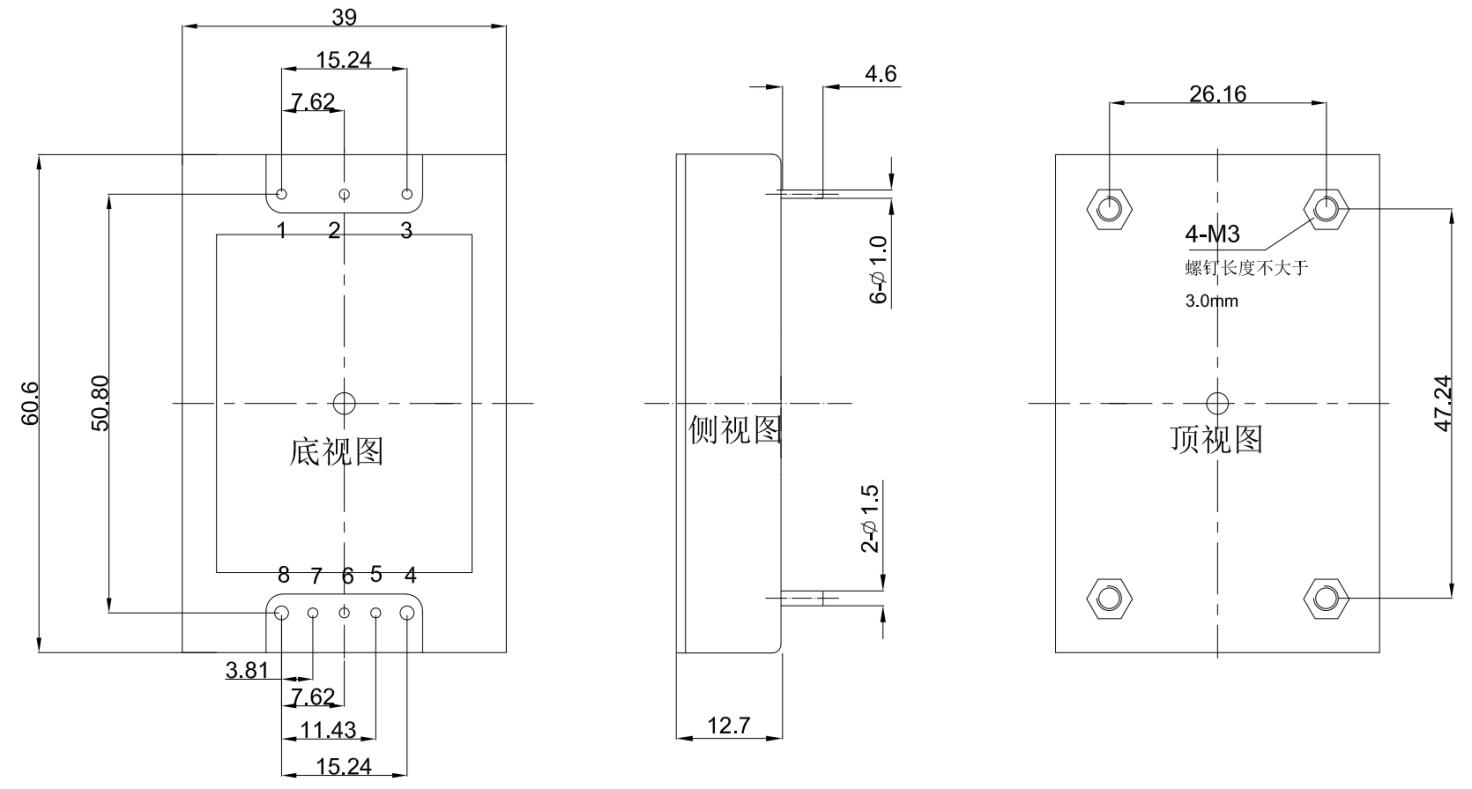

Mechanical dimensions drawing Unit: mm
1) Mechanical tolerance: x.x ± 0.5mm, x.xx ± 0.25mm
2) The diameters of pins 1-3 and 5-7 are 1mm, while the diameters of pins 4 and 8 are 1.5mm.
| Product Series | Package Size (mm) |
Power (W) |
Input voltage | Output voltage (Vdc) |
Maximum output current (A) |
efficiency (%) |
Product Model | Specification Download |
|---|---|---|---|---|---|---|---|---|

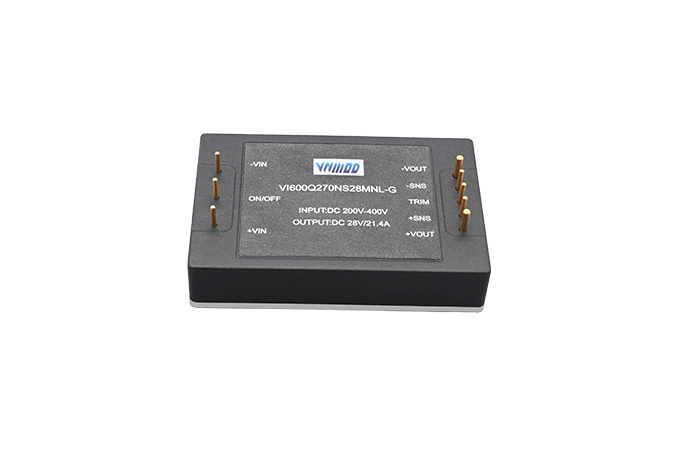

| Ruggedized DC-DC | 1/4 Brick | 600 | 200-400 | 28 | 21.43 | 94 | VI600Q270NS28MNL-G |
