Output Voltage Trim
Parallel Current Sharing
Over Temperature Protection
Input Under Voltage Protection
Output Over Current / Over Voltage / Short Circuit Protection

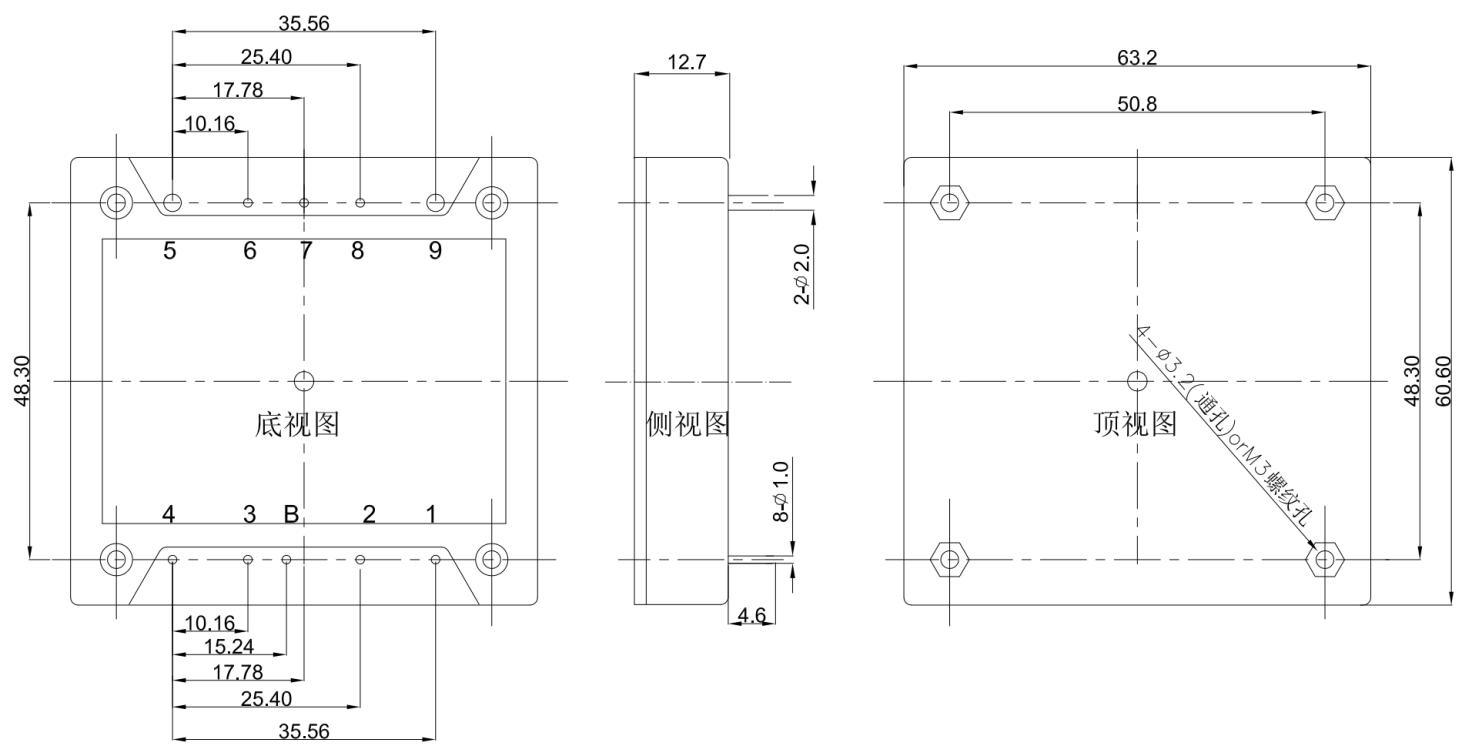

Notes:
1. Mechanical tolerance:** x.x ± 0.5 mm, x.xx ± 0.25 mm
2. Pin diameter:** Pins 1-4, B, 6-8: 1.0 mm diameter; Pins 5, 9: 2.0 mm diameter
| Product Series | Package Size (mm) |
Power (W) |
Input voltage | Output voltage (Vdc) |
Maximum output current (A) |
efficiency (%) |
Product Model | Specification Download |
|---|---|---|---|---|---|---|---|---|

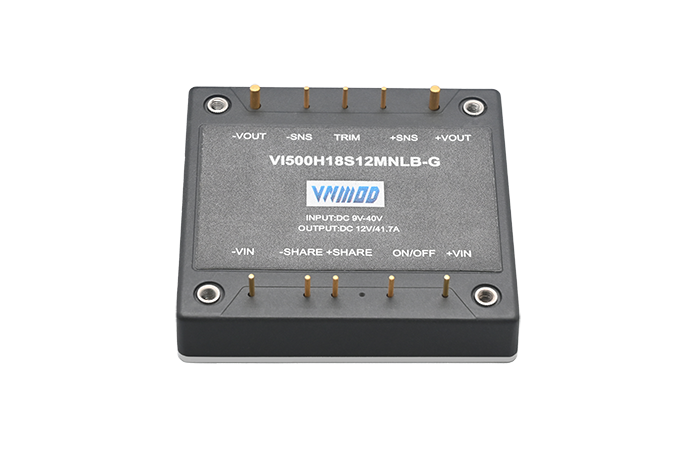

| Ruggedized DC-DC | 1/2 Brick | 500 | 9-40 | 12 | 41.7 | 93.5 | VI500H18S12xNLB-G | |
| Ruggedized DC-DC | 1/2 Brick | 500 | 9-40 | 28 | 18 | 94 | VI500H18S28xNLB-G | |
| Ruggedized DC-DC | 1/2 Brick | 300 | 9-40 | 24 | 12.5 | 92 | VI300H18S24xNLB |
