Isolation Voltage：1500 Vdc
Output Voltage Trim
Parallel Current Sharing
Over Temperature Protection
Input Under Voltage Protection
Output Over Current / Over Voltage / Short Circuit Protection

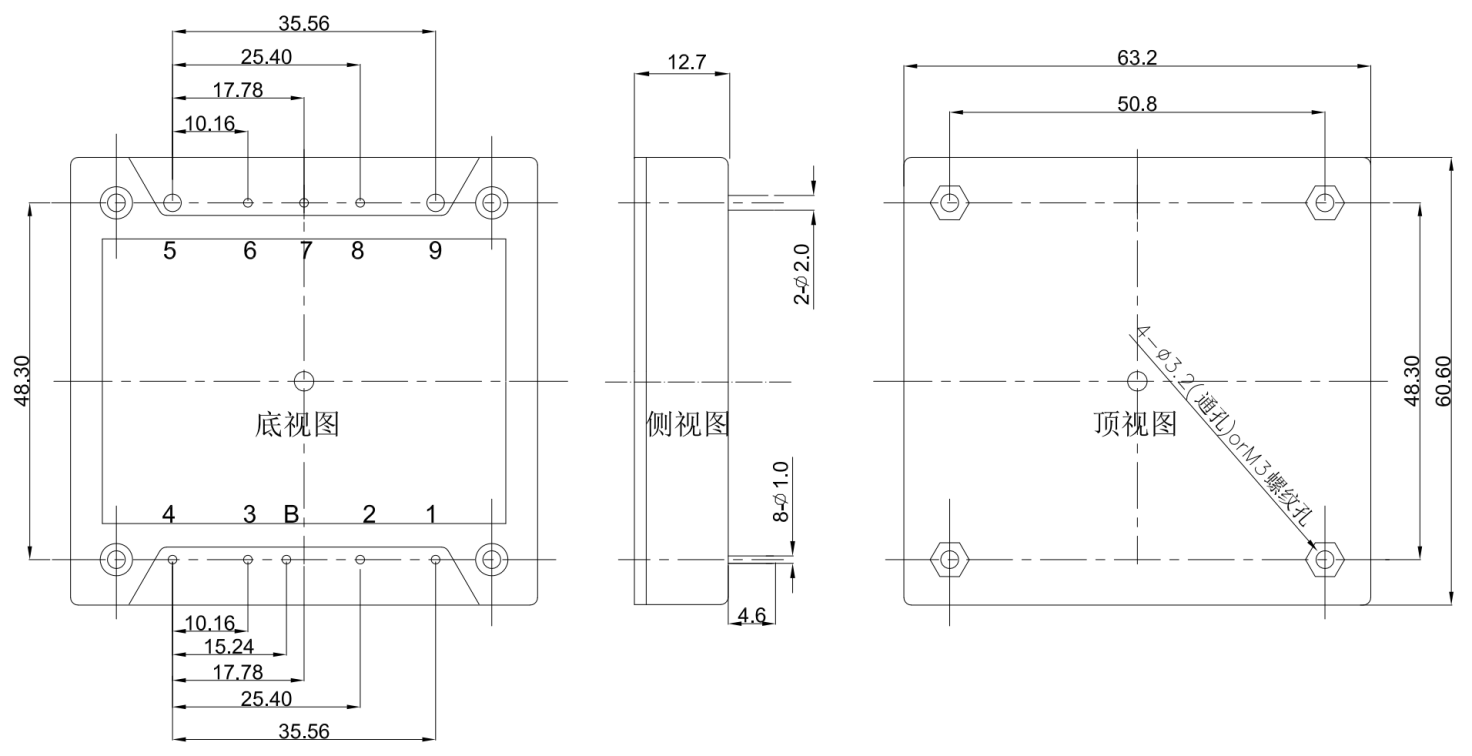

Mechanical dimensions drawing Unit: mm
1) Mechanical tolerance: x.x ± 0.5mm, x.xx ± 0.25mm
2) Pin 5 and Pin 9 have a diameter of 2.0mm, while the diameters of the other pins are 1.0mm.
| Product Series | Package Size (mm) |
Power (W) |
Input voltage | Output voltage (Vdc) |
Maximum output current (A) |
efficiency (%) |
Product Model | Specification Download |
|---|---|---|---|---|---|---|---|---|
| Ruggedized DC-DC | 1/2 Brick | 600 | 16-70 | 28 | 21.43 | 95 | VI600H28BS28xNLB-G | |
| Ruggedized DC-DC | 1/2 Brick | 600 | 16-70 | 24 | 25 | 92 | VI600H28BS24xNLB-G |
