Isolation Voltage：1500Vdc
Output Voltage Trim
Parallel Current Sharing
Over Temperature Protection
Input Under Voltage Protection
Output Over Current / Over Voltage / Short Circuit Protection

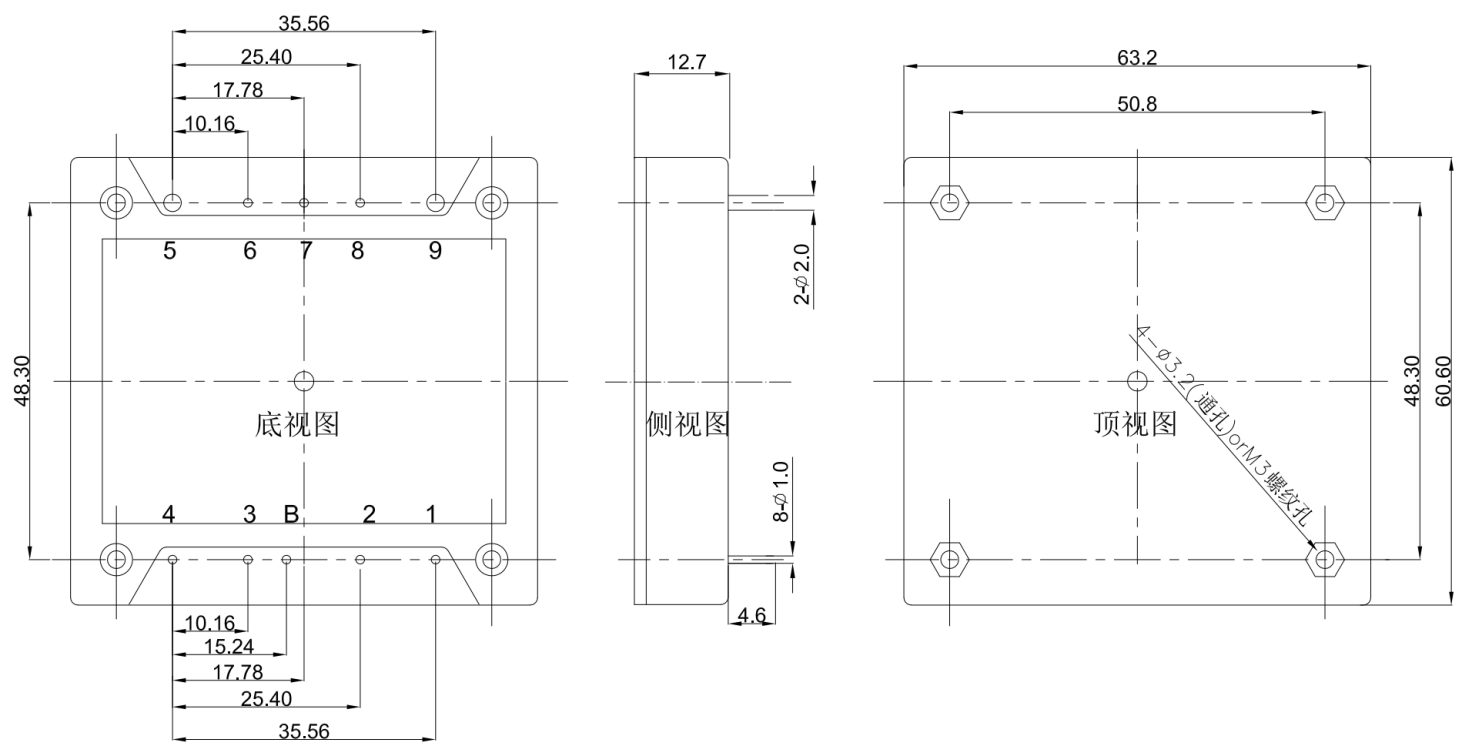

Note:
1) Mechanical tolerance: x.x ± 0.5mm, x.xx ± 0.25mm
2) Pin 5 and Pin 9 have a diameter of 2.0mm, while the diameters of the other pins are 1.0mm.
| Product Series | Package Size (mm) |
Power (W) |
Input voltage | Output voltage (Vdc) |
Maximum output current (A) |
efficiency (%) |
Product Model | Specification Download |
|---|---|---|---|---|---|---|---|---|

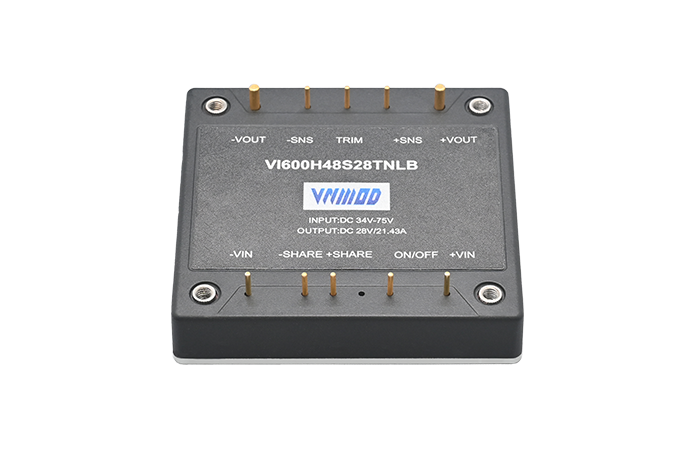

| Ruggedized DC-DC | 1/2 Brick | 600 | 34-75 | 28 | 21.43 | 93.5 | VI600H48S28xNLB-G |
