Output Voltage Trim
Parallel Current Sharing
Over Temperature Protection
Input Under Voltage Protection
Output Over Current / Over Voltage / Short Circuit Protection

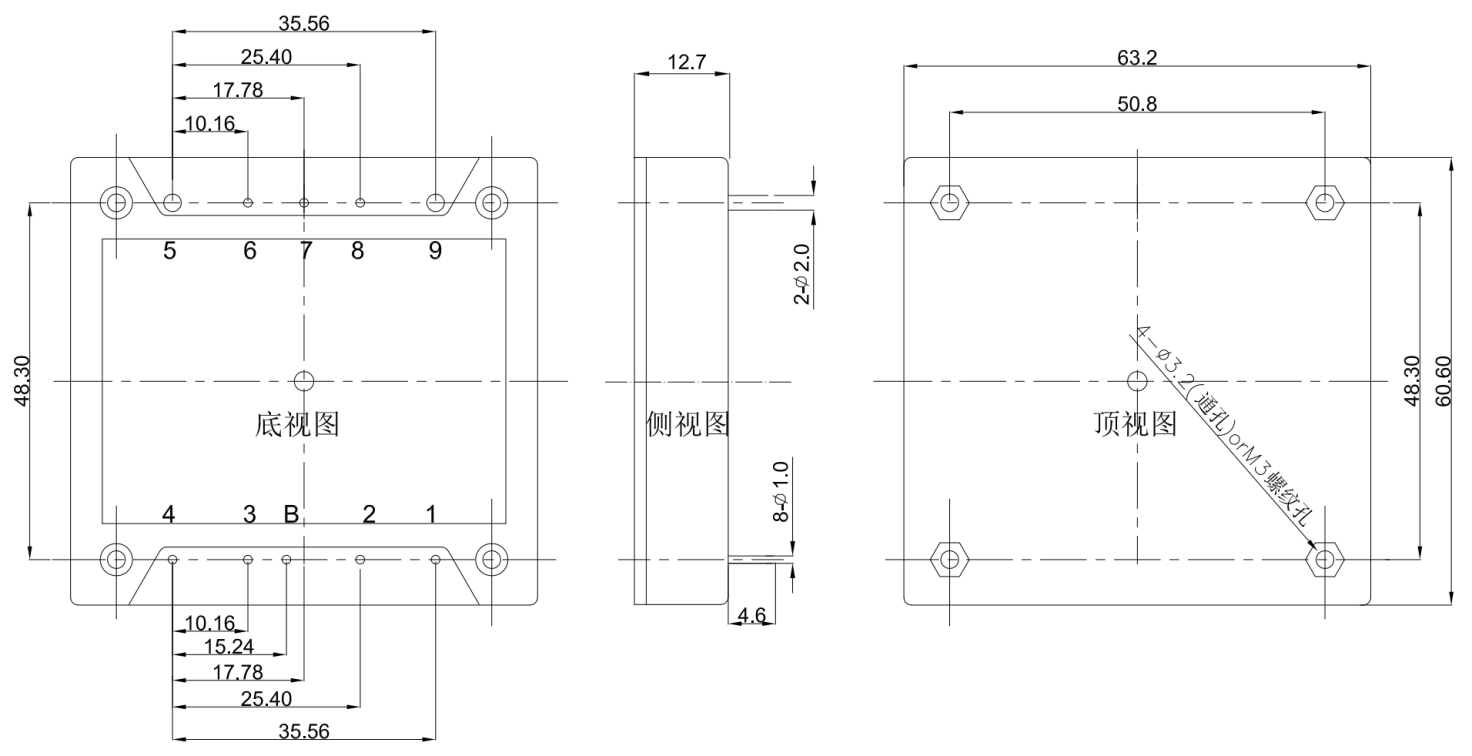

Mechanical dimensions drawing Unit: mm
1) Mechanical tolerance: x.x ± 0.5mm, x.xx ± 0.25mm
2) Pin 5 and Pin 9 have a diameter of 2.0mm, while the diameters of the other pins are 1.0mm.
| Product Series | Package Size (mm) |
Power (W) |
Input voltage | Output voltage (Vdc) |
Maximum output current (A) |
efficiency (%) |

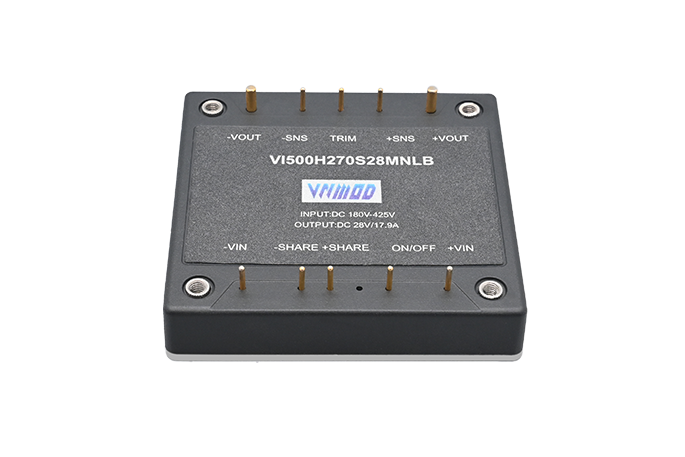

Product Model | Specification Download |
|---|---|---|---|---|---|---|---|---|
| Ruggedized DC-DC | 1/2 Brick | 350 | 180-425 | 5 | 70 | 88.5 | VI350H270S05xNLB | |
| Ruggedized DC-DC | 1/2 Brick | 500 | 180-425 | 12 | 41.7 | 93 | VI500H270S12xNLB | |
| Ruggedized DC-DC | 1/2 Brick | 500 | 180-425 | 24 | 20.8 | 93 | VI500H270S24xNLB | |
| Ruggedized DC-DC | 1/2 Brick | 500 | 180-425 | 28 | 17.9 | 92.5 | VI500H270S28xNLB | |
| Ruggedized DC-DC | 1/2 Brick | 500 | 180-425 | 48 | 10.4 | 92.5 | VI500H270S48xNLB |
