Output Voltage Trim
Parallel Current Sharing
Over Temperature Protection
Input Under Voltage Protection
Output Over Current / Over Voltage / · Short Circuit Protection

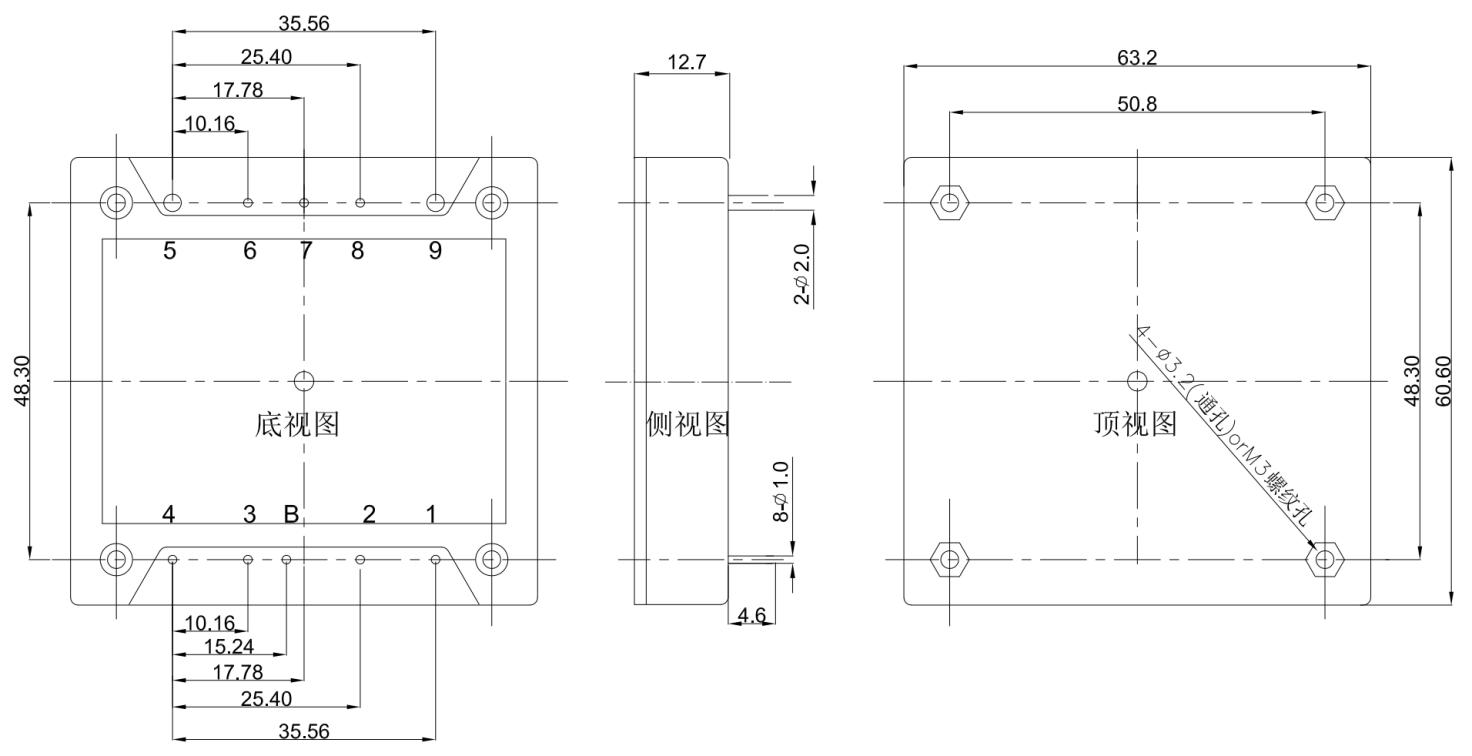

Notes:
Baseplate material: Aluminum substrate + plastic housing
Mechanical tolerance: x.x ± 0.5 mm, x.xx ± 0.25 mm
Pin diameter: Pins 1-3, 5-7: 1.0 mm diameter; Pins 4, 8: 1.5 mm diameter
| Product Series | Package Size (mm) |
Power (W) |
Input voltage | Output voltage (Vdc) |
Maximum output current (A) |
efficiency (%) |
Product Model | Specification Download |
|---|---|---|---|---|---|---|---|---|
| Ruggedized DC-DC | 1/2 Brick | 600 | 16-40 | 24 | 25 | 93 | VI600H28S24xNLB | |
| Ruggedized DC-DC | 1/2 Brick | 500 | 16-40 | 36 | 13.9 | 93 | VI500H28S36xNLB | |
| Ruggedized DC-DC | 1/2 Brick | 600 | 16-40 | 12 | 50 | 94 | VI600H28S12xNLB-G | |
| Ruggedized DC-DC | 1/2 Brick | 600 | 16-40 | 28 | 21.4 | 95 | VI600H28S28xNLB-G | |

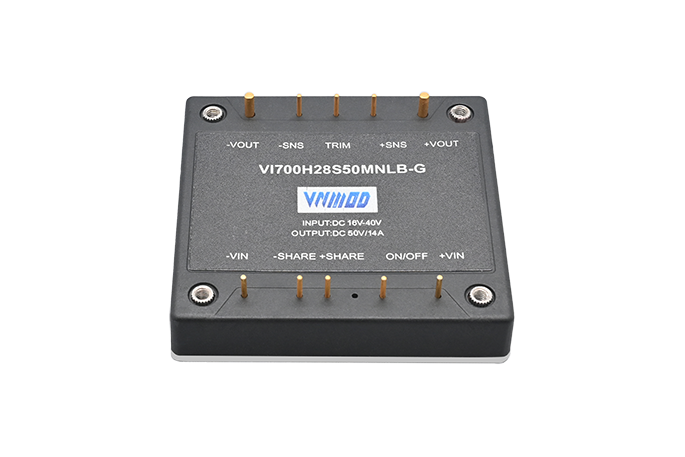

| Ruggedized DC-DC | 1/2 Brick | 700 | 16-40 | 50 | 14 | 95 | VI700H28S50xNLB-G |
