Isolation Voltage：1500 Vdc
Output Voltage Trim
Enable/Disable Control
Over Temperature Protection
Input Under Voltage Protection
Output Over Current / Over Voltage / Short Circuit Protection
| Product Series | Package Size (mm) |
Power (W) |
Input voltage | Output voltage (Vdc) |
Maximum output current (A) |
efficiency (%) |
Product Model | Specification Download |
|---|---|---|---|---|---|---|---|---|

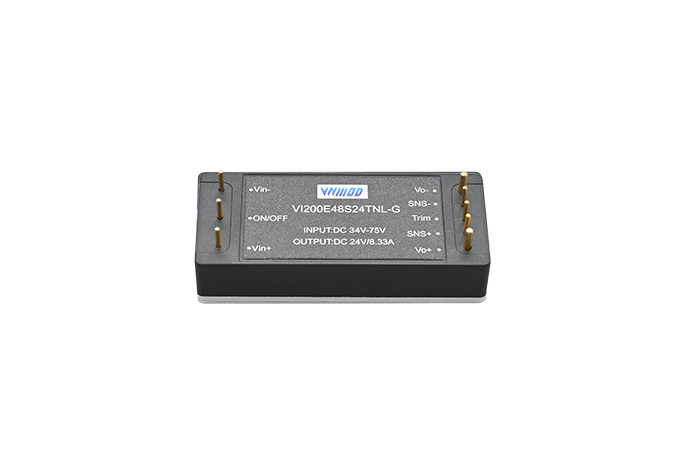

| Ruggedized DC-DC | 1/8 Brick | 200 | 34-75 | 24 | 8.33 | 92 | VI200E48S24xNL-G | |
| Ruggedized DC-DC | 1/8 Brick | 200 | 34-75 | 28 | 7.14 | 93 | VI200E48S28xNL-G |
