Isolation Voltage：1500 Vdc
Output Voltage Trim
Enable/Disable Control
Over Temperature Protection
Input Under Voltage Protection
Output Over Current / Over Voltage / Short Circuit Protection

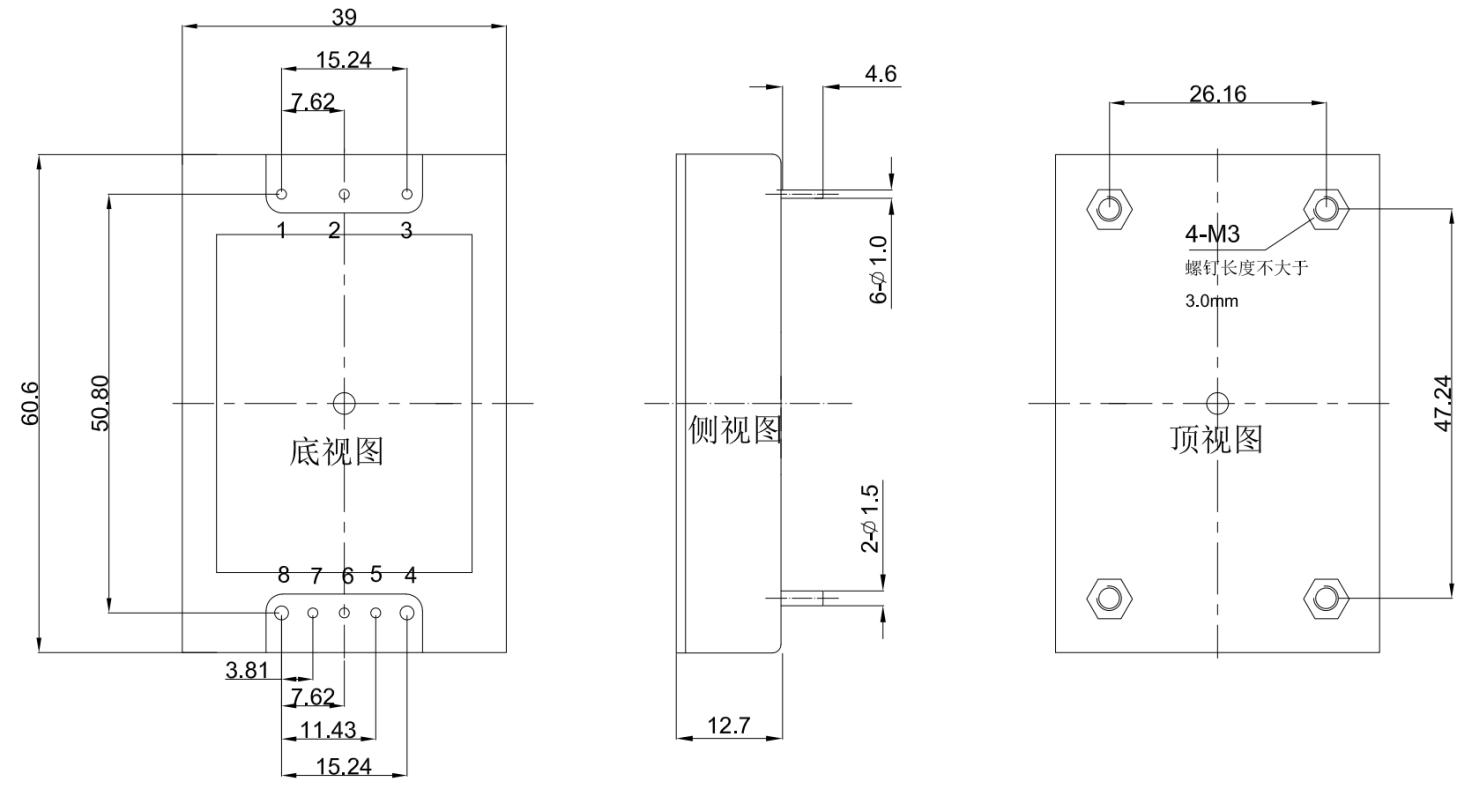

Note:
1) Bottom plate material: Aluminum base plate + Plastic casing
2) Mechanical tolerances: x.x ± 0.5mm, x.xx ± 0.25mm
3) The diameters of pins 1-3 and 5-7 are 1mm, while the diameters of pins 4 and 8 are 1.5mm.
| Product Series | Package Size (mm) |
Power (W) |
Input voltage | Output voltage (Vdc) |
Maximum output current (A) |
efficiency (%) |
Product Model | Specification Download |
|---|---|---|---|---|---|---|---|---|

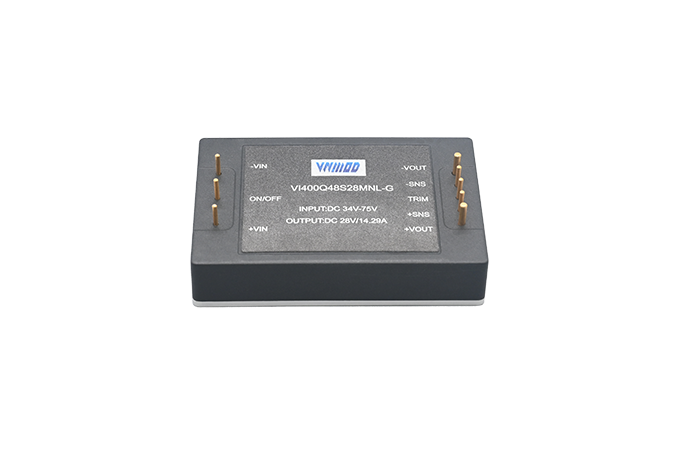

| Ruggedized DC-DC | 1/4 Brick | 400 | 34-75 | 28 | 14.29 | 94.5 | VI400Q48S28xNL-G |
