Isolation Voltage：1500 Vdc
Output Voltage Trim
Enable/Disable Control
Over Temperature Protection
Input Under Voltage Protection
Output Over Current / Over Voltage / Short Circuit Protection

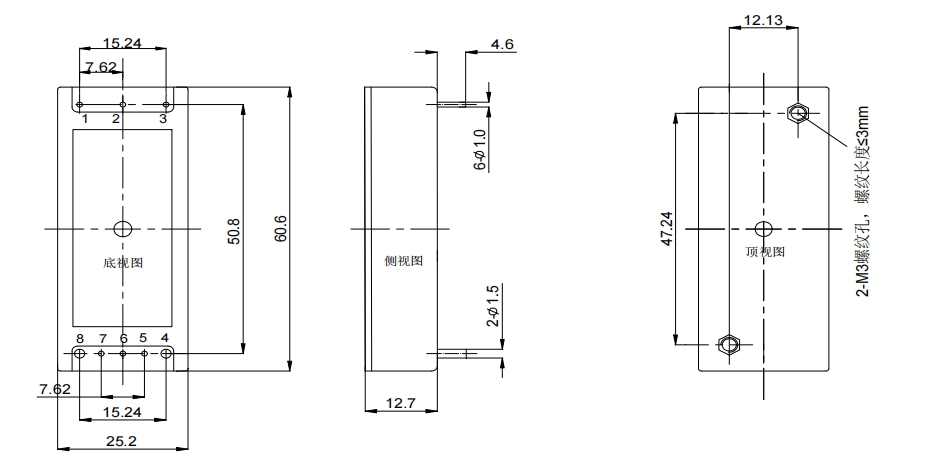

Note:
1) Bottom plate material: Aluminum base plate + Plastic casing
2) Mechanical tolerance: ±0.5mm for x.x, ±0.25mm for x.xx 3) The diameters of pins 1-3 and 5-7 are 1mm, while the diameters of pins 4 and 8 are 1.5mm.
| Product Series | Package Size (mm) |
Power (W) |
Input voltage | Output voltage (Vdc) |
Maximum output current (A) |
efficiency (%) |
Product Model | Specification Download |
|---|---|---|---|---|---|---|---|---|

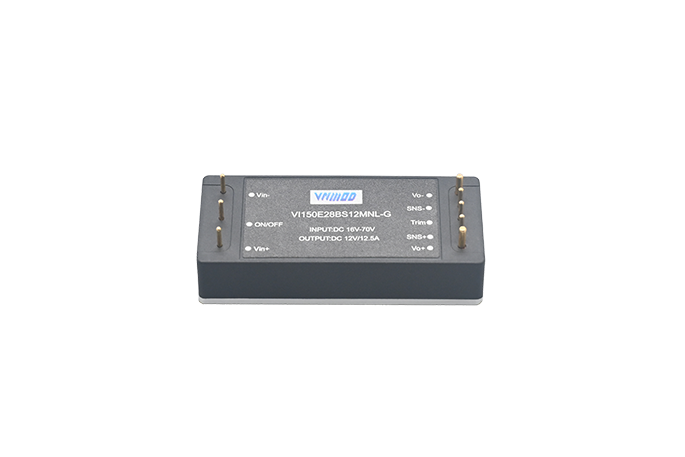

| Ruggedized DC-DC | 1/8 Brick | 150 | 16-70 | 12 | 12.5 | 94 | VI150E28BS12xNL-G |
