Output Voltage Trim
Enable/Disable Control
Over Temperature Protection
Input under voltage Protection
Output Over Current / Over Voltage / Short Circuit Protection

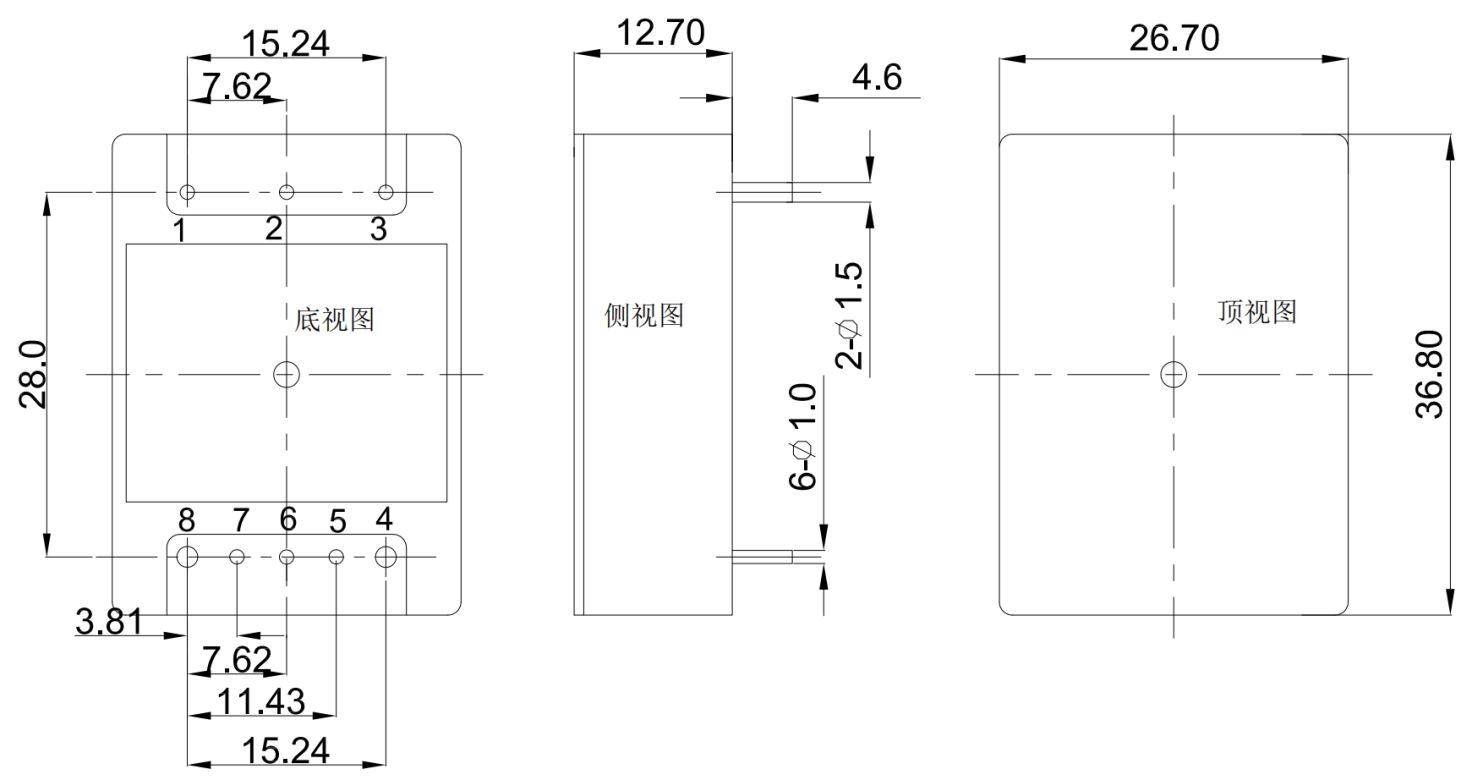

Mechanical dimension drawing
Unit: mm
1) Mechanical tolerance: x.x ± 0.5mm, x.xx ± 0.25mm
2) The diameters of pins 1-3 and 5-7 are 1mm, while the diameters of pins 4 and 8 are 1.5mm.

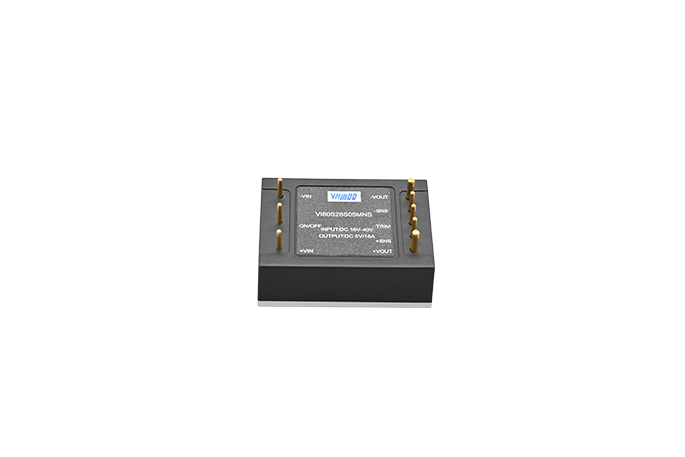

| Product Series | Package Size (mm) |
Power (W) |
Input voltage | Output voltage (Vdc) |
Maximum output current (A) |
efficiency (%) |
Product Model | Specification Download |
|---|---|---|---|---|---|---|---|---|
| Ruggedized DC-DC | 1/16 Brick | 80 | 16-40 | 5 | 16 | 89.5 | VI80S28S05xNS-G | |
| Ruggedized DC-DC | 1/16 Brick | 80 | 16-40 | 24 | 3.4 | 90.5 | VI80S28S24xNS-G | |
| Ruggedized DC-DC | 1/16 Brick | 80 | 16-40 | 28 | 2.86 | 90.5 | VI80S28S28xNS-G | |
| Ruggedized DC-DC | 1/16 Brick | 80 | 16-40 | 12 | 6.67 | 91 | VI80S28S12xNS-G |
