Isolation Voltage：1500 Vdc
Output Voltage Trim
Enable/Disable Control
Over Temperature Protection
Input Under Voltage Protection
Output Over Current / Over Voltage / Short Circuit Protection

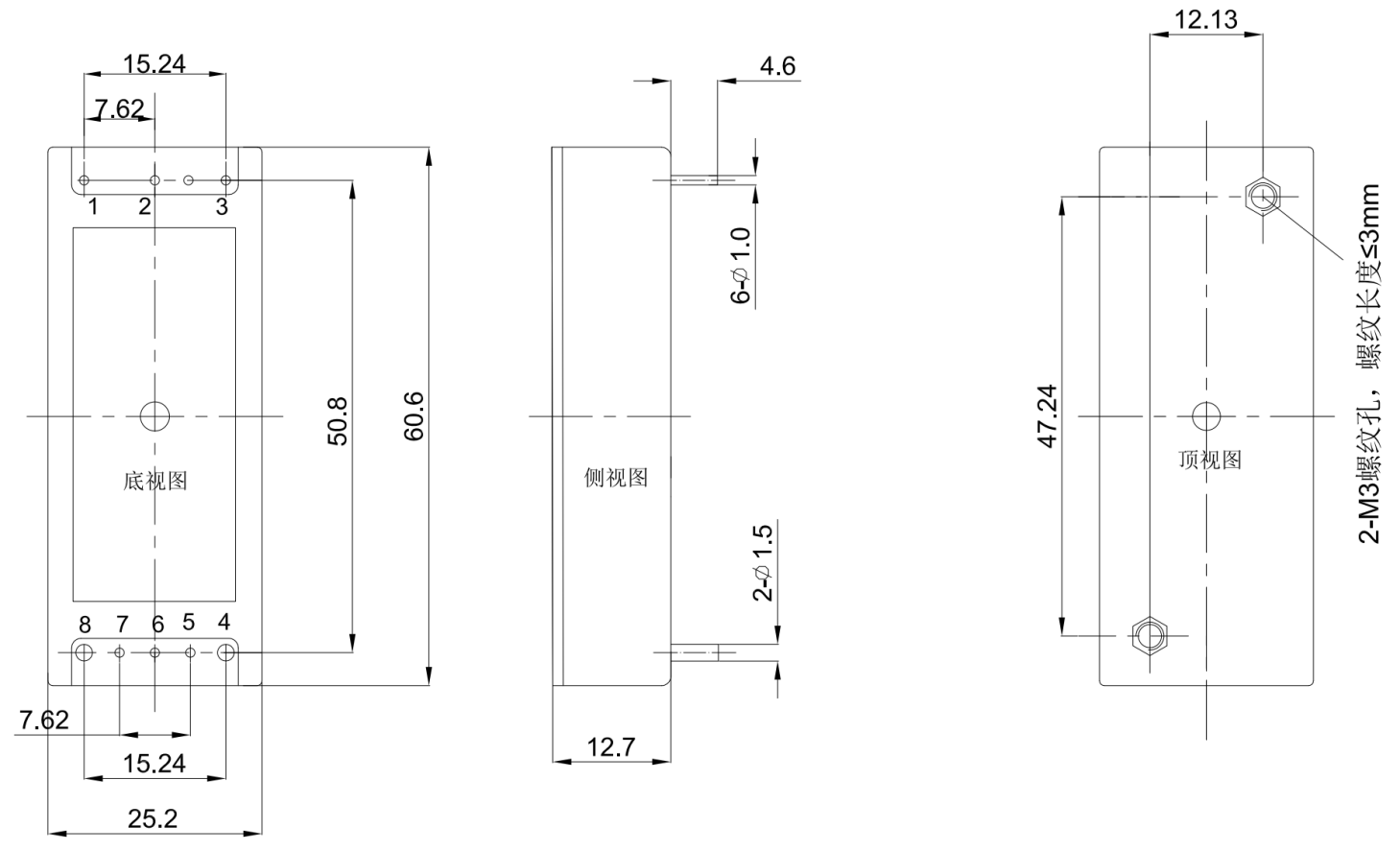

Mechanical dimensions drawing Unit: mm
1) Mechanical tolerance: x.x ± 0.5mm, x.xx ± 0.25mm
2) The diameters of pins 1-3 and 5-7 are 1mm, while the diameters of pins 4 and 8 are 1.5mm.
| Product Series | Package Size (mm) |
Power (W) |
Input voltage | Output voltage (Vdc) |
Maximum output current (A) |
efficiency (%) |
Product Model | Specification Download |
|---|---|---|---|---|---|---|---|---|
| Ruggedized DC-DC | 1/8 Brick | 100 | 16-40 | 3.3 | 30.3 | 90.5 | VI100E28S3V3xNL | |
| Ruggedized DC-DC | 1/8 Brick | 160 | 16-40 | 5 | 32 | 90 | VI160E28S05xNL | |
| Ruggedized DC-DC | 1/8 Brick | 160 | 16-40 | 15 | 10.7 | 90 | VI160E28S15xNL | |
| Ruggedized DC-DC | 1/8 Brick | 160 | 16-40 | 24 | 6.7 | 92 | VI160E28S24xNL | |
| Ruggedized DC-DC | 1/8 Brick | 200 | 16-40 | 28 | 7.14 | 94 | VI200E28S28xNL-G |
