Isolation Voltage：1500 Vdc
Output Voltage Trim
Enable/Disable Control
Over Temperature Protection
Input Under Voltage Protection
Output Over Current / Over Voltage / Short Circuit Protection

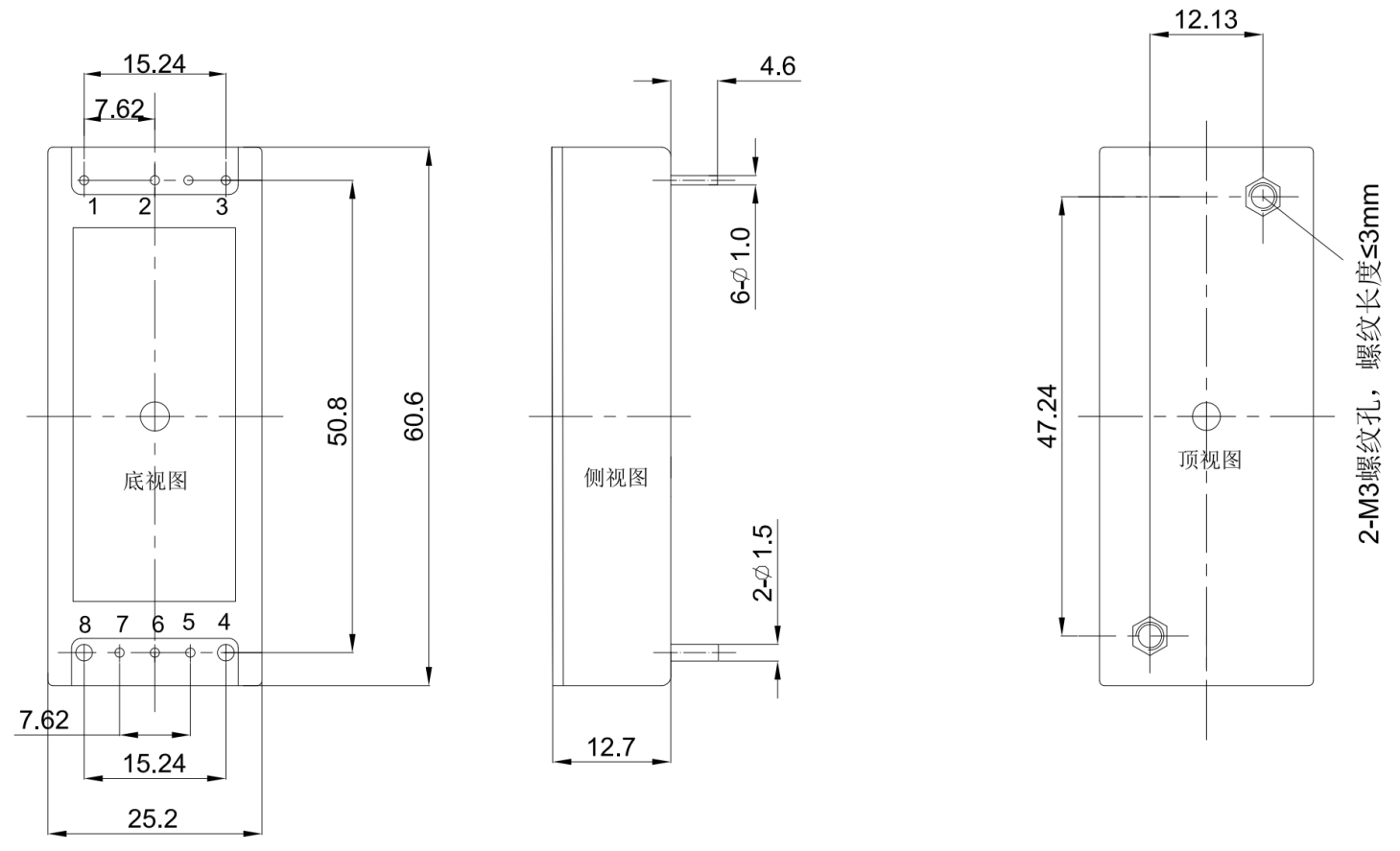

Mechanical dimension drawing
Unit: mm
1) Mechanical tolerance: x.x ± 0.5mm, x.xx ± 0.25mm
2) The diameters of pins 1-3 and 5-7 are 1mm, while the diameters of pins 4 and 8 are 1.5mm.
| Product Series | Package Size (mm) |
Power (W) |
Input voltage | Output voltage (Vdc) |
Maximum output current (A) |
efficiency (%) |
Product Model | Specification Download |
|---|---|---|---|---|---|---|---|---|

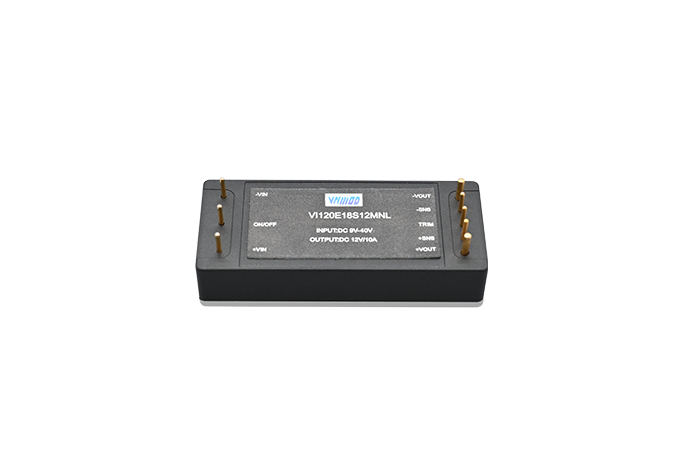

| Ruggedized DC-DC | 1/8 Brick | 120 | 9-40 | 12 | 10 | 88 | VI120E18S12xNL | |
| Ruggedized DC-DC | 1/8 Brick | 120 | 9-40 | 15 | 8 | 90.5 | VI120E18S15xNL | |
| Ruggedized DC-DC | 1/8 Brick | 150 | 9-40 | 19 | 7.9 | 90 | VI150E18S19xNL |
