Isolation Voltage：1500 Vac
Output Voltage Trim
Over Temperature Protection
Input Under Voltage Protection
Output Over Current / Over Voltage /Short Circuit Protection

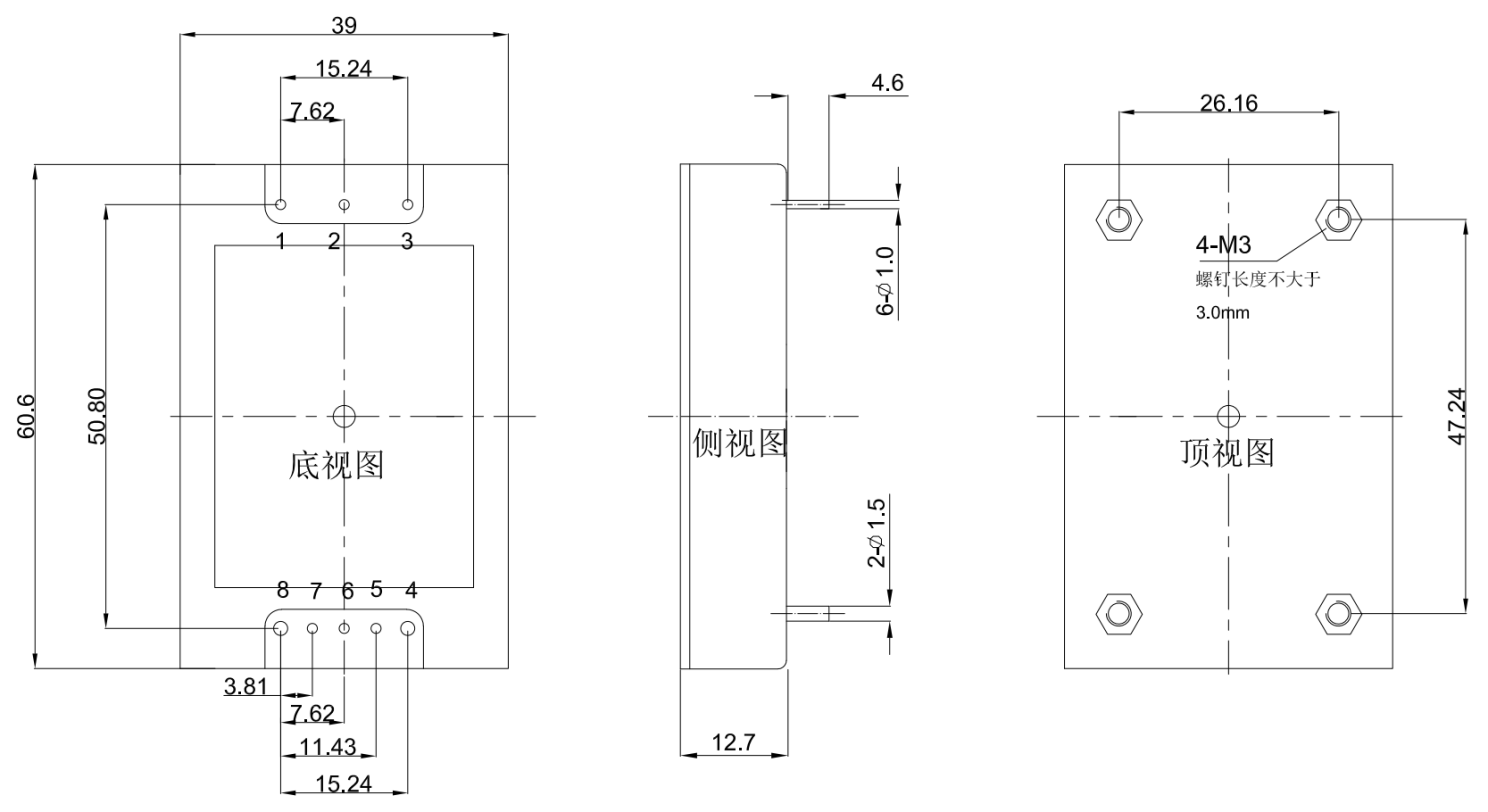

Mechanical dimensions drawing Unit: mm
1) Mechanical tolerance: x.x ± 0.5mm, x.xx ± 0.25mm
2) The diameters of pins 1-3 and 5-7 are 1mm, while the diameters of pins 4 and 8 are 1.5mm.
| Product Series | Package Size (mm) |
Power (W) |
Input voltage | Output voltage (Vdc) |
Maximum output current (A) |
efficiency (%) |
Product Model | Specification Download |
|---|---|---|---|---|---|---|---|---|
| Ruggedized DC-DC | 1/4 Brick | 200 | 180-425 | 5 | 40 | 90.5 | VI200Q270S05xNL | |
| Ruggedized DC-DC | 1/4 Brick | 250 | 180-425 | 6 | 41.7 | 91 | VI250Q270S06xNL | |
| Ruggedized DC-DC | 1/4 Brick | 250 | 180-425 | 12 | 20.8 | 90.5 | VI250Q270S12xNL | |
| Ruggedized DC-DC | 1/4 Brick | 250 | 180-425 | 15 | 16.7 | 91.5 | VI250Q270S15xNL | |
| Ruggedized DC-DC | 1/4 Brick | 250 | 180-425 | 24 | 10.4 | 91 | VI250Q270S24xNL |
