Isolation Voltage：1500 Vdc
Output Voltage Trim
Over Temperature Protection
Input Under Voltage Protection
Output Over Current / Output Over Voltage / Short Circuit Protection

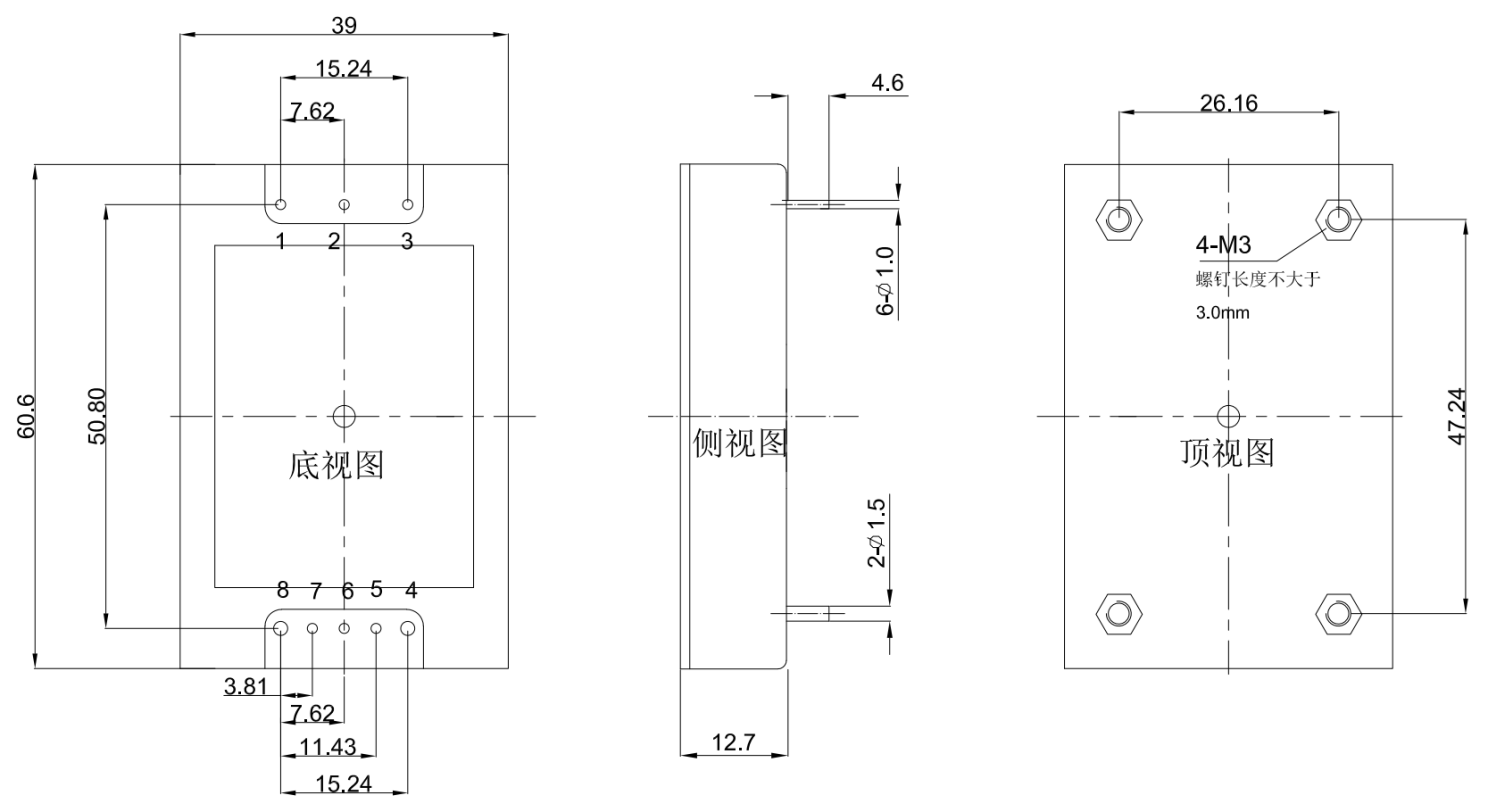

Mechanical dimensions drawing Unit: mm
1) Mechanical tolerance: x.x ± 0.5mm, x.xx ± 0.25mm
2) The diameters of pins 1-3 and 5-7 are 1mm, while the diameters of pins 4 and 8 are 1.5mm.
| Product Series | Package Size (mm) |
Power (W) |
Input voltage | Output voltage (Vdc) |
Maximum output current (A) |
efficiency (%) |
Product Model | Specification Download |
|---|---|---|---|---|---|---|---|---|
| Ruggedized DC-DC | 1/4 Brick | 330 | 16-40 | 24 | 13.8 | 93.5 | VI330Q28S24xNL | |
| Ruggedized DC-DC | 1/4 Brick | 300 | 16-40 | 36 | 8.4 | 92 | VI300Q28S36xNL | |
| Ruggedized DC-DC | 1/4 Brick | 300 | 16-40 | 50 | 6 | 93 | VI300Q28S50xNL | |
| Ruggedized DC-DC | 1/4 Brick | 300 | 16-40 | 5 | 60 | 93 | VI300Q28S05xNL-G | |
| Ruggedized DC-DC | 1/4 Brick | 400 | 16-40 | 12 | 33.33 | 95 | VI400Q28S12xNL-G |
