Isolation Voltage：1500Vdc
Operating Temperature：-40 ℃〜100 ℃
Output Voltage Trim
Enable/Disable Control
Over Temperature Protection
Input Under / Over Voltage Protection
Output Over Current / Over Voltage /Short Circuit Protection
| Product Series | Package Size (mm) |
Power (W) |
Input voltage | Output voltage (Vdc) |
Maximum output current (A) |
efficiency (%) |
Product Model | Specification Download |
|---|---|---|---|---|---|---|---|---|
| Industrial DC-DC | Full Brick | 1500 | 200-400 | 28 | 53.6 | 95 | VI1500F300S28TSNL | |

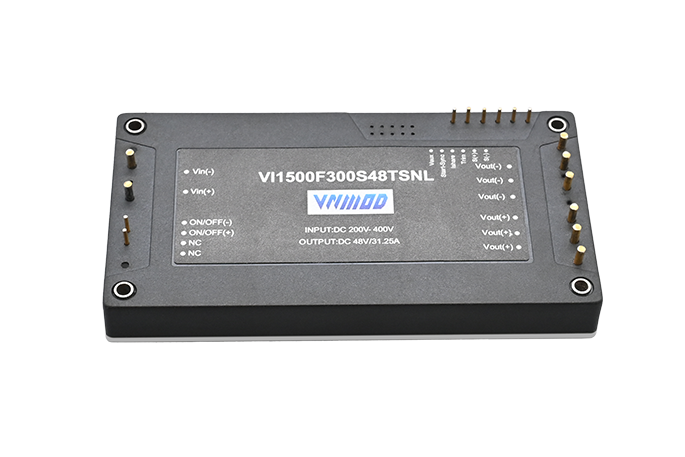

| Industrial DC-DC | Full Brick | 1500 | 200-400 | 48 | 31.25 | 93 | VI1500F300S48TSNL |
