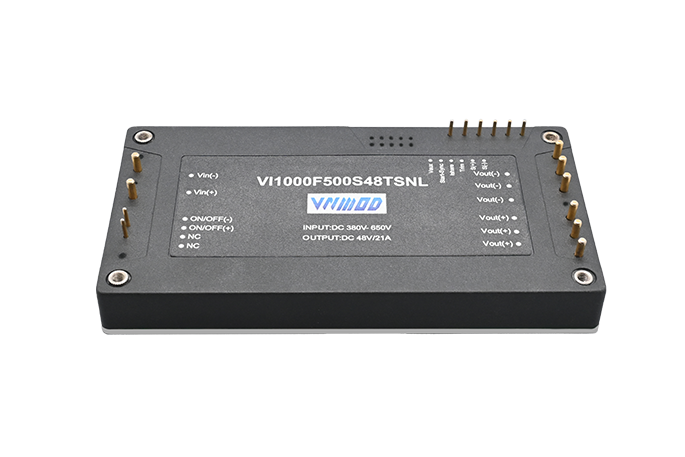

Isolation Voltage：4250 Vdc
Output Voltage Trim
Parallel Current Sharing
Over Temperature Protection
Input Under Voltage / Over Voltage Protection
Output Over Current / Over Voltage / Short Circuit Protection
Note:

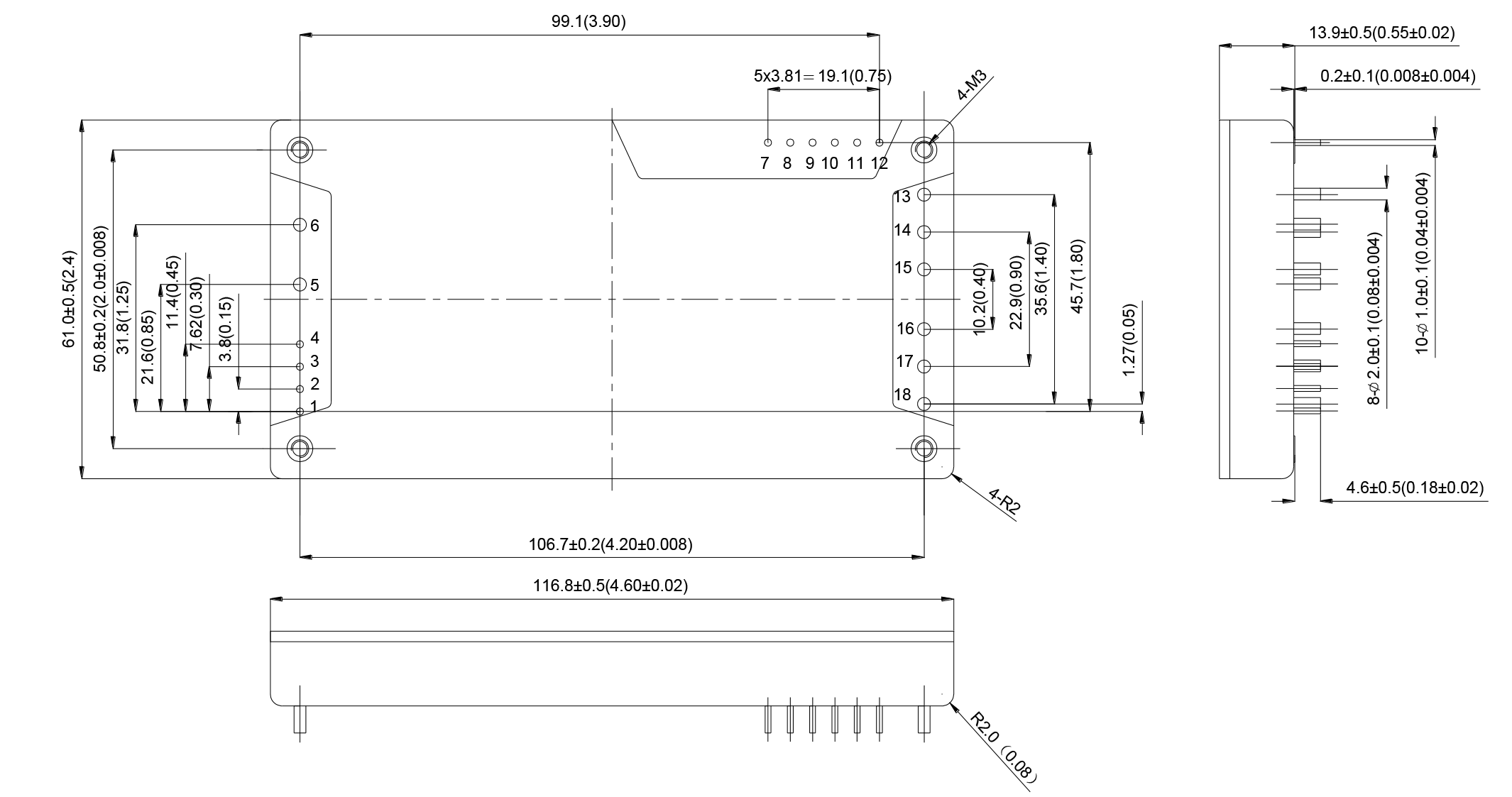

1. Bottom plate material: Aluminum plate + Plastic shell
2. Pins 1-4/7-12 have a diameter of 1.0mm (0.04 inches)
3. The diameters of the other pins are all 2.0mm (0.08 inches).
4. Uncertain tolerance: x.x ± 0.5mm (±0.02 inches), x.xx ± 0.25mm (±0.01 inches)
| Product Series | Package Size (mm) |
Power (W) |
Input voltage | Output voltage (Vdc) |
Maximum output current (A) |
efficiency (%) |
Product Model | Specification Download |
|---|---|---|---|---|---|---|---|---|
| Industrial DC-DC | Full Brick | 560 | 380-650 | 8 | 70 | 92 | VI1000F500S8TSNL | |
| Industrial DC-DC | Full Brick | 840 | 380-650 | 12 | 70 | 93 | VI1000F500S12TSNL | |
| Industrial DC-DC | Full Brick | 1000 | 380-650 | 24 | 41.7 | 93 | VI1000F500S24TSNL | |
| Industrial DC-DC | Full Brick | 1000 | 380-650 | 28 | 35.7 | 93.5 | VI1000F500S28TSNL | |
| Industrial DC-DC | Full Brick | 1000 | 380-650 | 36 | 27.8 | 94.5 | VI1000F500S36TSNL |
