Isolation Voltage：4250 Vdc
Operating Temperature：-40 ℃〜100 ℃
Enable/Disable Control
Parallel Current Sharing
Over Temperature Protection
Input Under / Over Voltage Protection
Output Over Current / Over Voltage / Short Circuit Protection

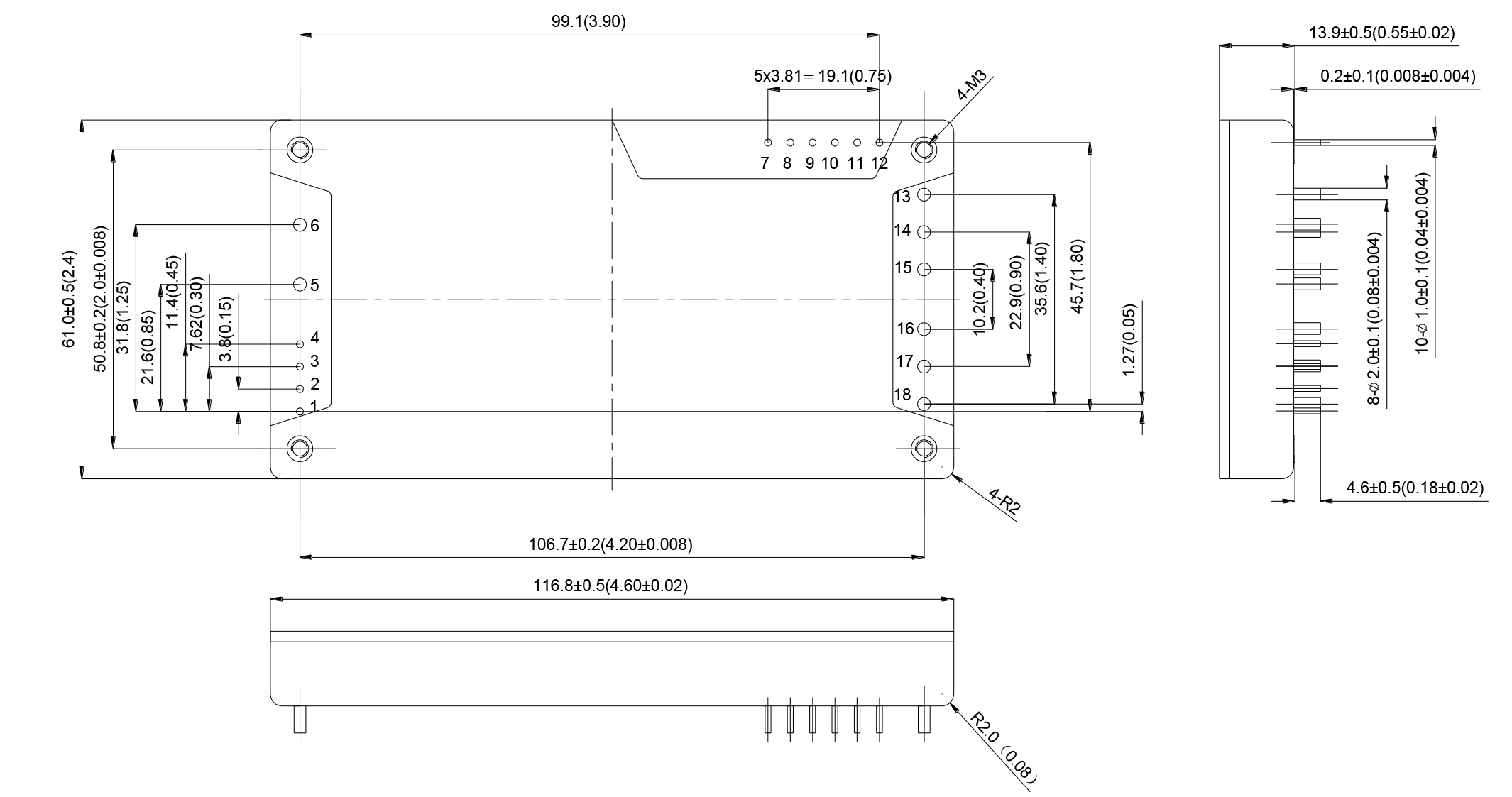

Note:
1. Bottom plate material: Aluminum plate + Plastic shell
2. Pins 1-4/7-12 have a diameter of 1.0mm (0.04 inches)
3. The diameters of the other pins are all 2.0mm (0.08 inches).
4. Uncertain tolerance: x.x ± 0.5mm (±0.02 inches), x.xx ± 0.25mm (±0.01 inches)
| Product Series | Package Size (mm) |
Power (W) |
Input voltage | Output voltage (Vdc) |
Maximum output current (A) |
efficiency (%) |
Product Model | Specification Download |
|---|---|---|---|---|---|---|---|---|

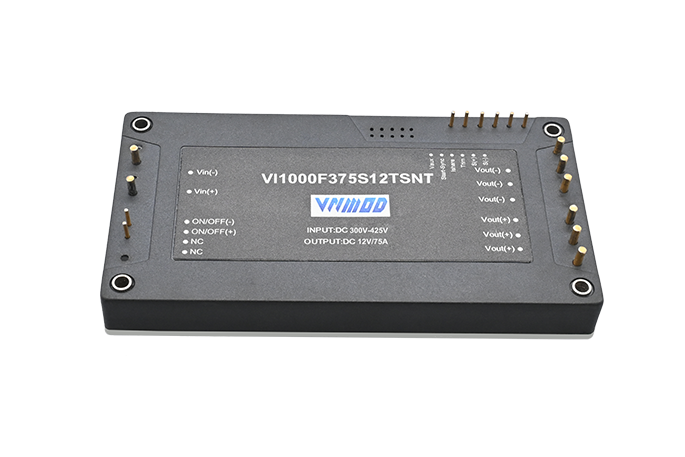

| Industrial DC-DC | Full Brick | 900 | 300-425 | 12 | 75 | 93 | VI1000F375S12TSNT |
