Isolation Voltage：4250 Vdc
Operating Temperature：-40 ℃〜90 ℃
Parallel Current Sharing
Output Voltage Trim
Over Temperature Protection
Input Under / Over Voltage Protection
Output Over Current / Over Voltage /Short Circuit Protection

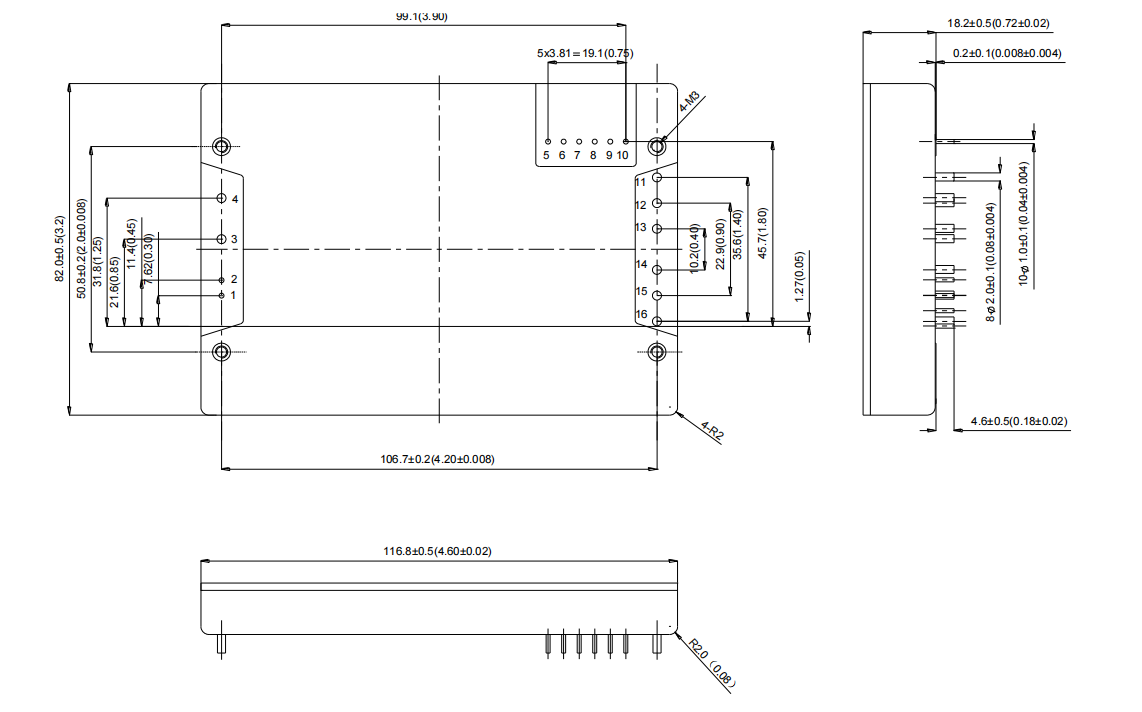

Note:
1) Bottom plate material: Aluminum base plate + Plastic casing
2) Pins 1-2, 5-10 have a diameter of 1.0mm (0.04 inches)
3) The diameters of all other pins are 2.0mm (0.08 inches)
4) Unspecified tolerance: x.x ± 0.5mm (±0.02in), x.xx ± 0.25mm (±0.01in)
| Product Series | Package Size (mm) |
Power (W) |
Input voltage | Output voltage (Vdc) |
Maximum output current (A) |
efficiency (%) |
Product Model | Specification Download |
|---|---|---|---|---|---|---|---|---|
| Industrial DC-DC | 116.8*82*18.2 | 1500 | 200-750 | 28 | 54 | 94.5 | VI1500R450BS28TSNL | |
| Industrial DC-DC | 116.8*82*18.2 | 1500 | 200-750 | 48 | 31.3 | 95 | VI1500R450BS48TSNL |
