Isolation Voltage：4250 Vdc
Enable/Disable Control
Parallel Current Sharing
Over Temperature Protection
Input Under / Over Voltage Protection
Output Over Current / Over Voltage / Short Circuit Protection

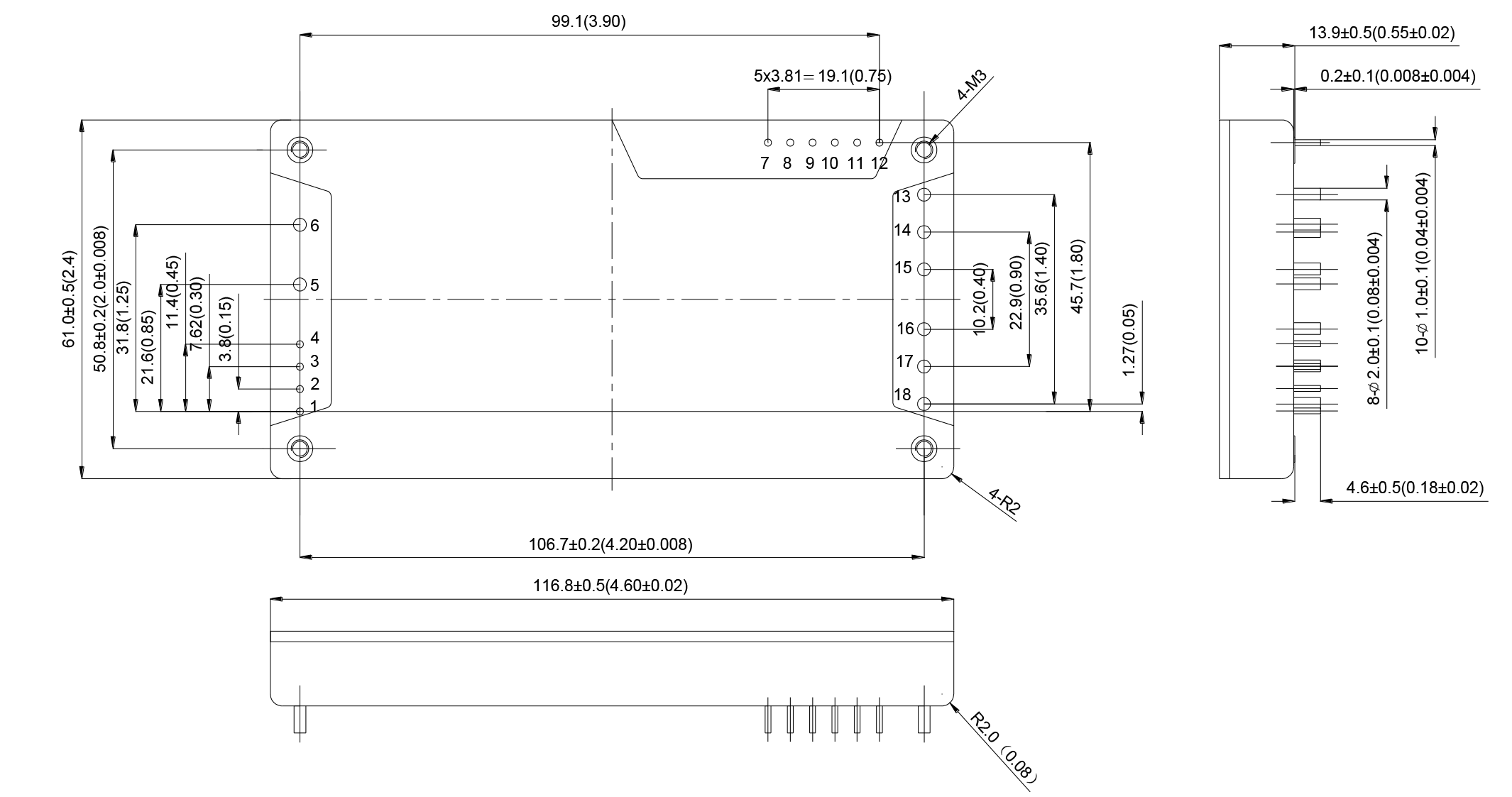

Note:
1. Bottom plate material: Aluminum plate + Plastic shell
2. Pins 1-4/7-12 have a diameter of 1.0mm (0.04 inches)
3. The diameters of the other pins are all 2.0mm (0.08 inches).
4. Uncertain tolerance: x.x ± 0.5mm (±0.02 inches), x.xx ± 0.25mm (±0.01 inches)
| Product Series | Package Size (mm) |
Power (W) |
Input Voltage | Output Voltage (Vdc) |
Maximum Output Current (A) |
Efficiency (%) |
Product Model | Specification Download |
|---|---|---|---|---|---|---|---|---|
| Industrial DC-DC | Full Brick | 560 | 200-400 | 8 | 70 | 92 | VI1000F300S8TSNL | |
| 840 | 12 | 70 | 93 | VI1000F300S12TSNL | ||||
| 1000 | 24 | 41.7 | 93.5 | VI1000F300S24TSNL | ||||

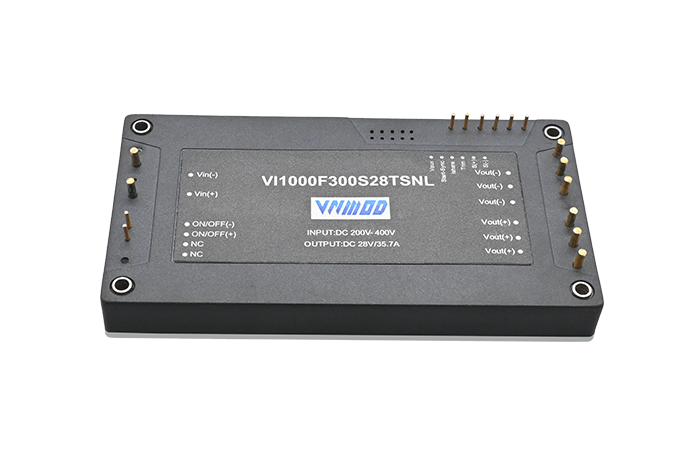

| 1000 | 28 | 35.7 | 93.5 | VI1000F300S28TSNL | ||||
| 1000 | 36 | 27.8 | 93.5 | VI1000F300S36TSNL | ||||
| 1000 | 48 | 21 | 93 | VI1000F300S48TSNL | ||||
| 1000 | 60 | 16.7 | 93 | VI1000F300S60TSNT |
