Isolation Voltage：3000 Vdc
Operating Temperature：-40 ℃〜100 ℃
Output Voltage Trim
Over Temperature Protection
Input Under / Over Voltage Protection
Output Over Current / Over Voltage / Short Circuit Protection

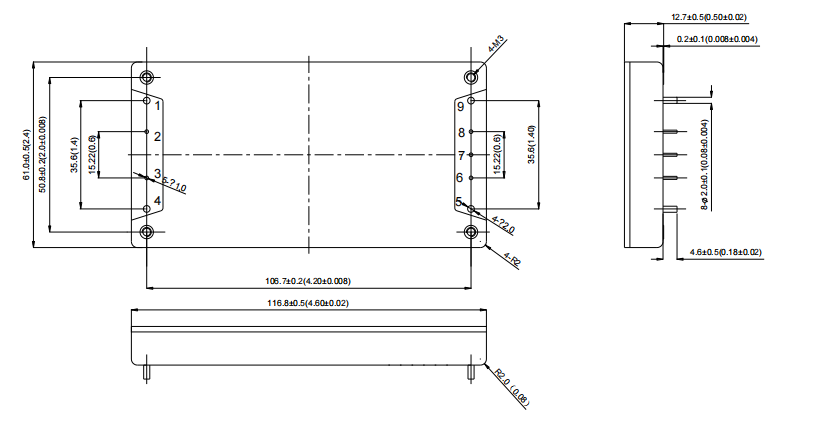

| Product Series | Package Size (mm) |
Power (W) |
Input voltage | Output voltage (Vdc) |
Maximum output current (A) |
efficiency (%) |
Product Model | Specification Download |
|---|---|---|---|---|---|---|---|---|

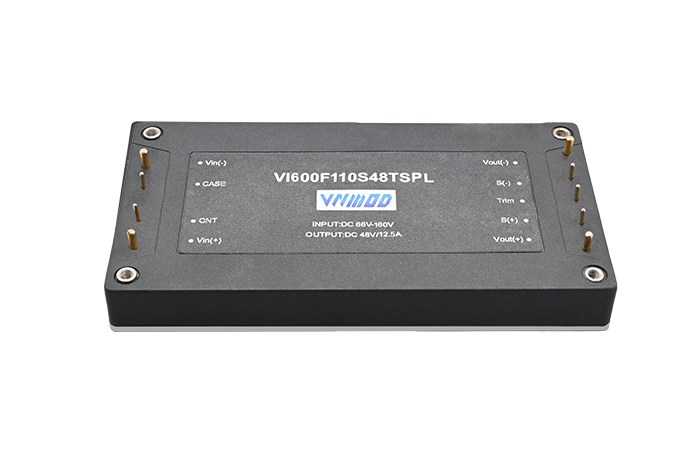

| Industrial DC-DC | Full Brick | 600 | 66-160 | 48 | 12.5 | 93 | VI600F110S48TSPL |
