Isolation Voltage：1500 Vdc
Operating Temperature：-40 ℃〜100 ℃
Output Voltage Trim
Over Temperature Protection
Input Under Voltage Protection
Output Over Current / Over Voltage / Short Circuit Protection

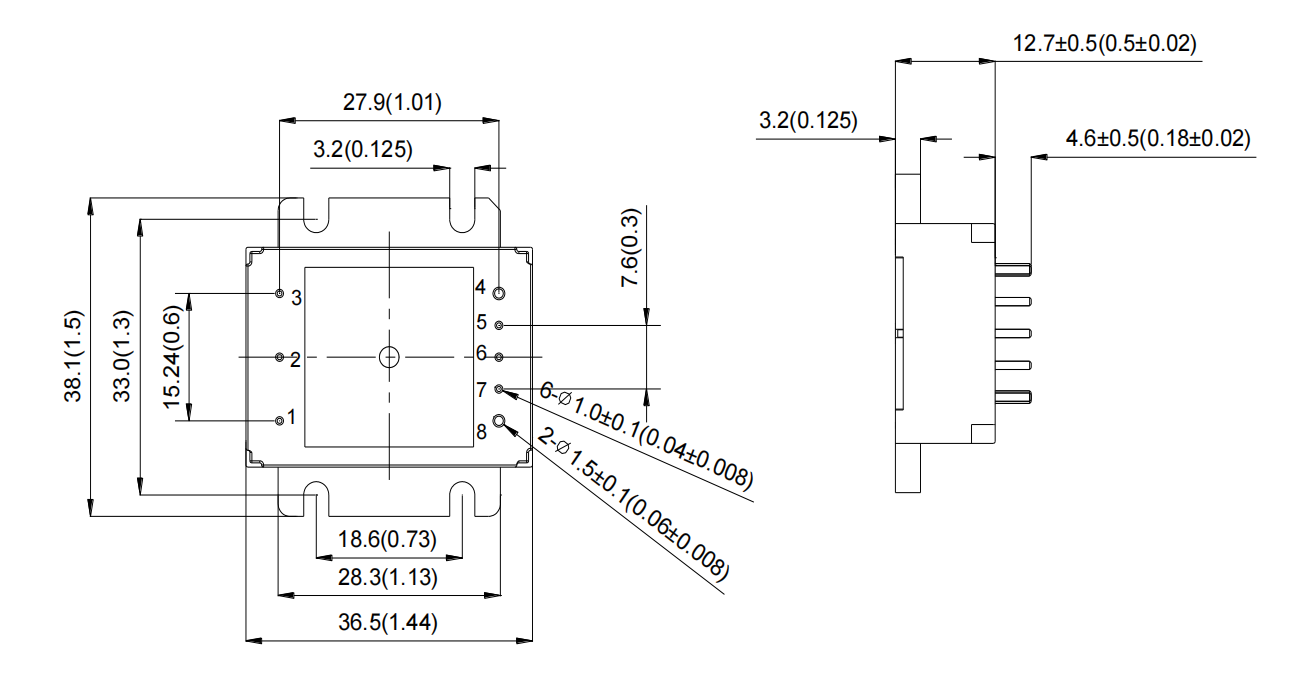

Note:
Shell material: plastic, aluminum sheet
Pin 4 and Pin 8 have a diameter of 1.50mm (0.06 inches)
The diameters of the other pins are all 1.00mm (0.04 inches).
Uncertain tolerance: x.x ± 0.5mm (±0.02 inches), x.xx ± 0.25mm (±0.01 inches)
| Product Series | Package Size (mm) |
Power (W) |
Input Voltage | Output Voltage (Vdc) |
Maximum Output Current (A) |
Efficiency (%) |
Product Model | Specification Download |
|---|---|---|---|---|---|---|---|---|
| Industrial DC-DC | 1/16 Brick | 50 | 9-36 | 3.3 | 15 | 84 | VI50S24BS3V3TSP | |
| Industrial DC-DC | 1/16 Brick | 50 | 9-36 | 5 | 10 | 84.5 | VI50S24BS5TSP | |
| Industrial DC-DC | 1/16 Brick | 50 | 9-36 | 12 | 4.17 | 82.5 | VI50S24BS12TSP | |
| Industrial DC-DC | 1/16 Brick | 45 | 9-36 | 15 | 3 | 81 | VI50S24BS15TSP |
