Isolation Voltage：1500Vdc
Operating Temperature：-40 ℃〜100 ℃
Output Voltage Trim
Over Temperature Protection
Input Under Voltage Protection
Output Over Current / Over Voltage / Short Circuit Protection

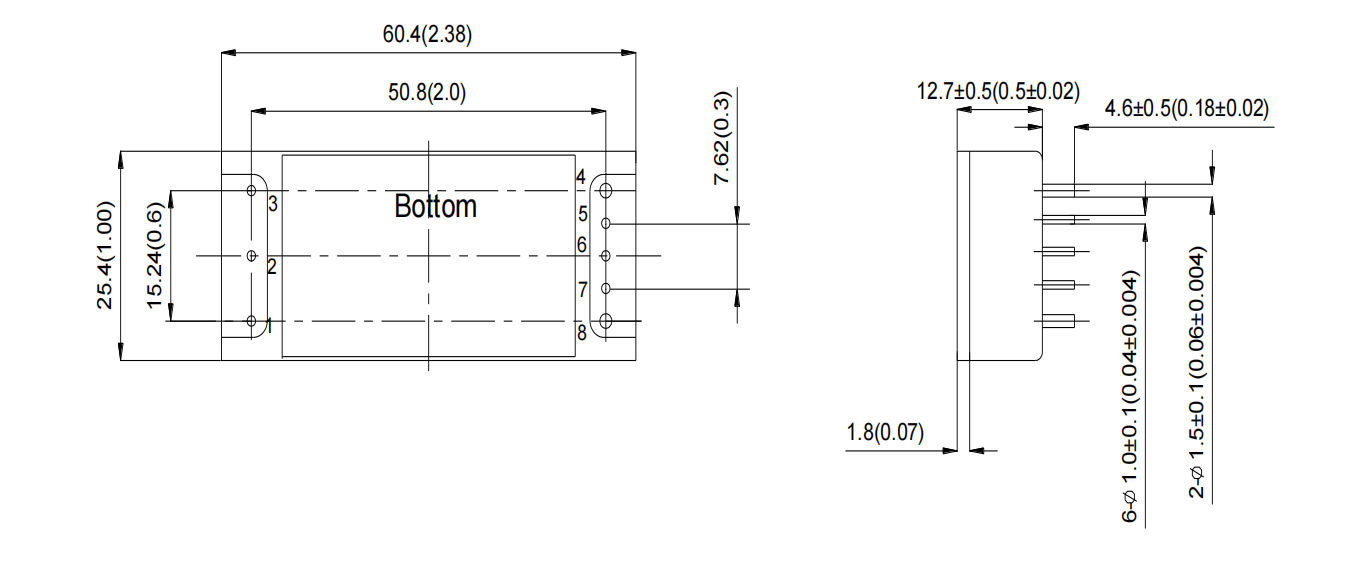

Note:
1) Shell material: Black plastic shell
2) The diameters of pins 4 and 8 are 1.50mm (0.06 inches).
3) The diameters of all other pins are 1.00mm (0.04 inches).
4) Unspecified tolerance: x.x ± 0.5mm (±0.02 inches), x.xx ± 0.25mm (±0.01 inches)
| Product Series | Package Size (mm) |
Power (W) |
Input voltage | Output voltage (Vdc) |
Maximum output current (A) |
efficiency (%) |
Product Model | Specification Download |
|---|---|---|---|---|---|---|---|---|

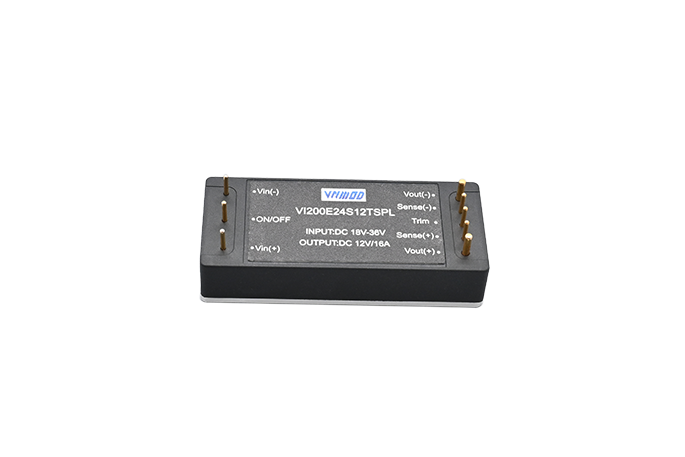

| Industrial DC-DC | 1/8 Brick | 192 | 18-36 | 12 | 16 | 93 | VI200E24S12TSPL | |
| Industrial DC-DC | 1/8 Brick | 200 | 18-36 | 15 | 13.33 | 93 | VI200E24S15TSPL | |
| Industrial DC-DC | 1/8 Brick | 192 | 18-36 | 24 | 8 | 91 | VI200E24S24TSPL |
