Isolation Voltage：1500 Vdc
Operating Temperature：-40 ℃〜100 ℃
Output Voltage Trim
Over Temperature Protection
Input Under Voltage Protection
Output Over Current / Over Voltage / Short Circuit Protection

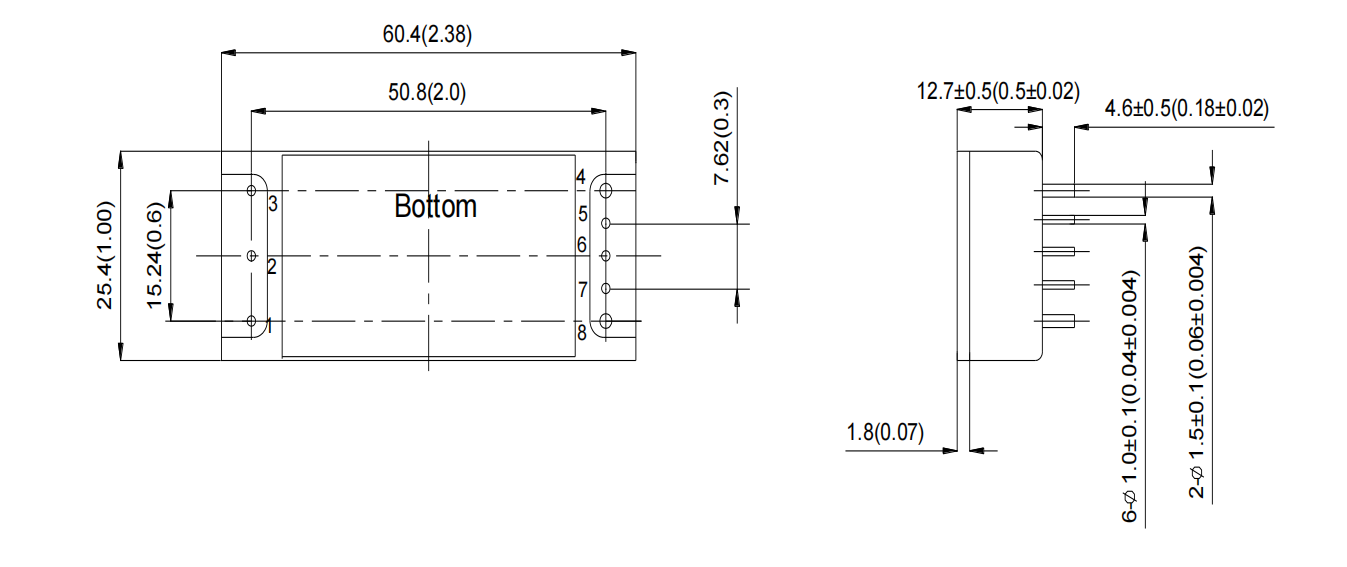

Note:
1) Shell material: Black plastic shell
2) The diameters of pins 4 and 8 are 1.50mm (0.06 inches).
3) The diameters of all other pins are 1.00mm (0.04 inches).
4) Unspecified tolerance: x.x ± 0.5mm (±0.02 inches), x.xx ± 0.25mm (±0.01 inches)
| Product Series | Package Size (mm) |
Power (W) |
Input Voltage | Output Voltage (Vdc) |
Maximum Output Current (A) |
Efficiency (%) |
Product Model | Specification Download |
|---|---|---|---|---|---|---|---|---|
| Industrial DC-DC | 1/8 Brick | 99 | 9-36 | 3.3 | 30 | 88 | VI100E24BS3V3TSPL | |
| Industrial DC-DC | 1/8 Brick | 100 | 9-36 | 5 | 20 | 89.5 | VI100E24BS5TSPL | |

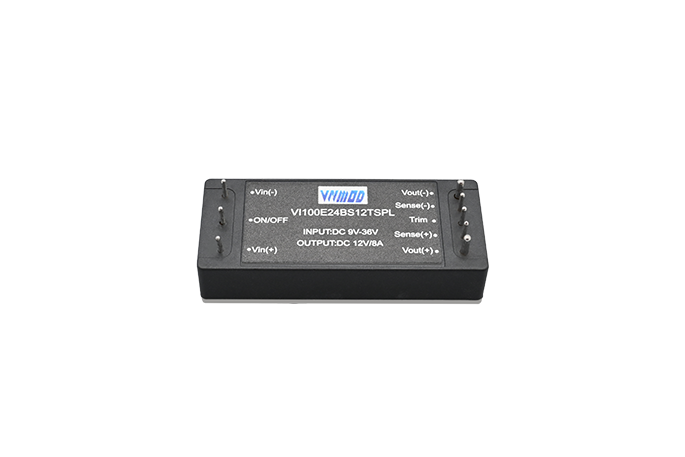

| Industrial DC-DC | 1/8 Brick | 96 | 9-36 | 12 | 8 | 86 | VI100E24BS12TSPL |
