Isolation Voltage：1500 Vdc
Operating Temperature：-40 ℃〜100 ℃
Output Voltage Trim
Over Temperature Protection
Input Under Voltage Protection
Output Over Current / Over Voltage / Short Circuit Protection

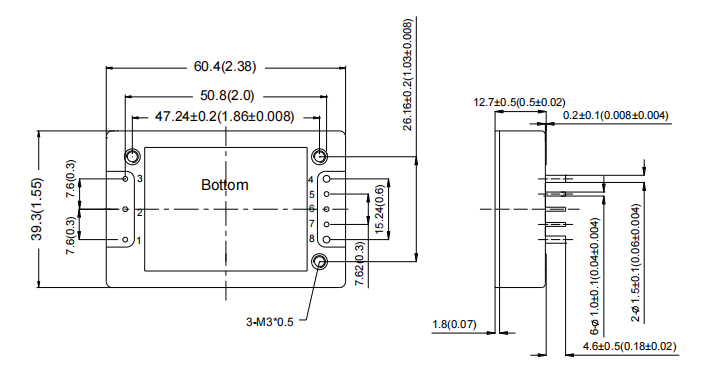

Note:
1) Shell material: Aluminum base plate + Black plastic shell
2) The diameters of pins 4 and 8 are 1.5mm (0.06 inches).
3) The diameters of the other pins are all 1.0mm (0.04 inches)
4) Uncertain tolerance: x.x ± 0.5mm (±0.02 inches), x.xx ± 0.25mm (±0.01 inches)
| Product Series | Package Size (mm) |
Power (W) |
Input voltage | Output voltage (Vdc) |
Maximum output current (A) |
efficiency (%) |
Product Model | Specification Download |
|---|---|---|---|---|---|---|---|---|

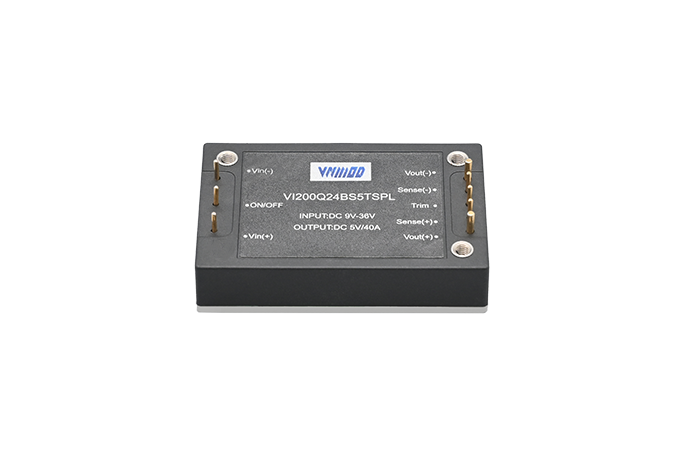

| Industrial DC-DC | 1/4 Brick | 200 | 9-36 | 3.3 | 60.6 | 89.5 | VI200Q24BS3V3TSPL | |
| Industrial DC-DC | 1/4 Brick | 200 | 9-36 | 5 | 40 | 90 | VI200Q24BS5TSPL |
