Isolation Voltage：4250 Vdc
Operating Temperature：-40 ℃〜100 ℃
Output Voltage Trim · Over Temperature Protection
Input Under / Over Voltage Protection
Output Over Current / Over Voltage / Short Circuit Protection

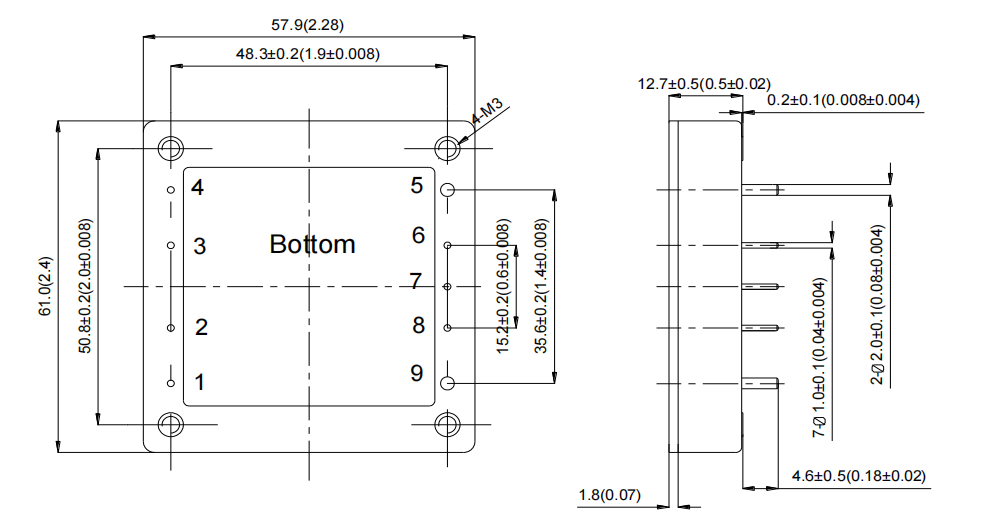

Note:
1) Shell material: Aluminum sheet + plastic shell.
2) The diameters of pins 5 and 9 are 2.0mm (0.08 inches).
3) The diameters of the other pins are all 1.0mm (0.04 inches).
4) Uncertain tolerance: x.x ± 0.5mm (±0.02 inches), x.xx ± 0.25mm (±0.01 inches)
| Product Series | Package Size (mm) |
Power (W) |
Input voltage | Output voltage (Vdc) |
Maximum output current (A) |
efficiency (%) |
Product Model | Specification Download |
|---|---|---|---|---|---|---|---|---|
| Industrial DC-DC | 1/2 Brick | 504 | 170-340 | 24 | 21 | 90 | VI500H250S24TSPL | |

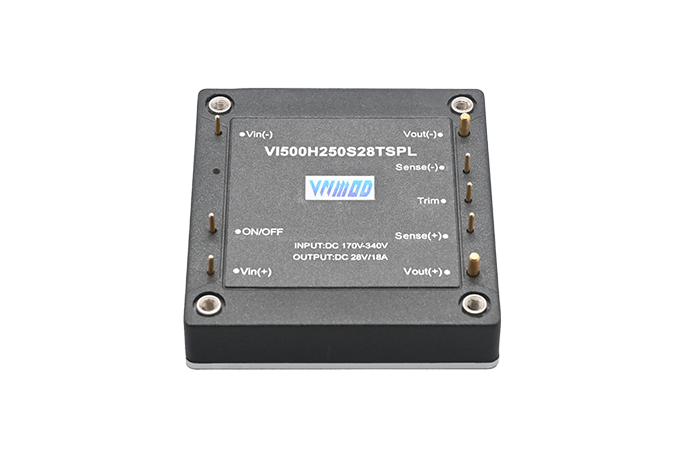

| Industrial DC-DC | 1/2 Brick | 504 | 170-340 | 28 | 18 | 90.5 | VI500H250S28TSPL |
