Case to All Pins Isolation：1500 Vdc
Output Voltage Trim
Enable/Disable Control
Over Temperature Protection
Input Under Voltage Protection
Output Over Current / Over Voltage / Short Circuit Protection

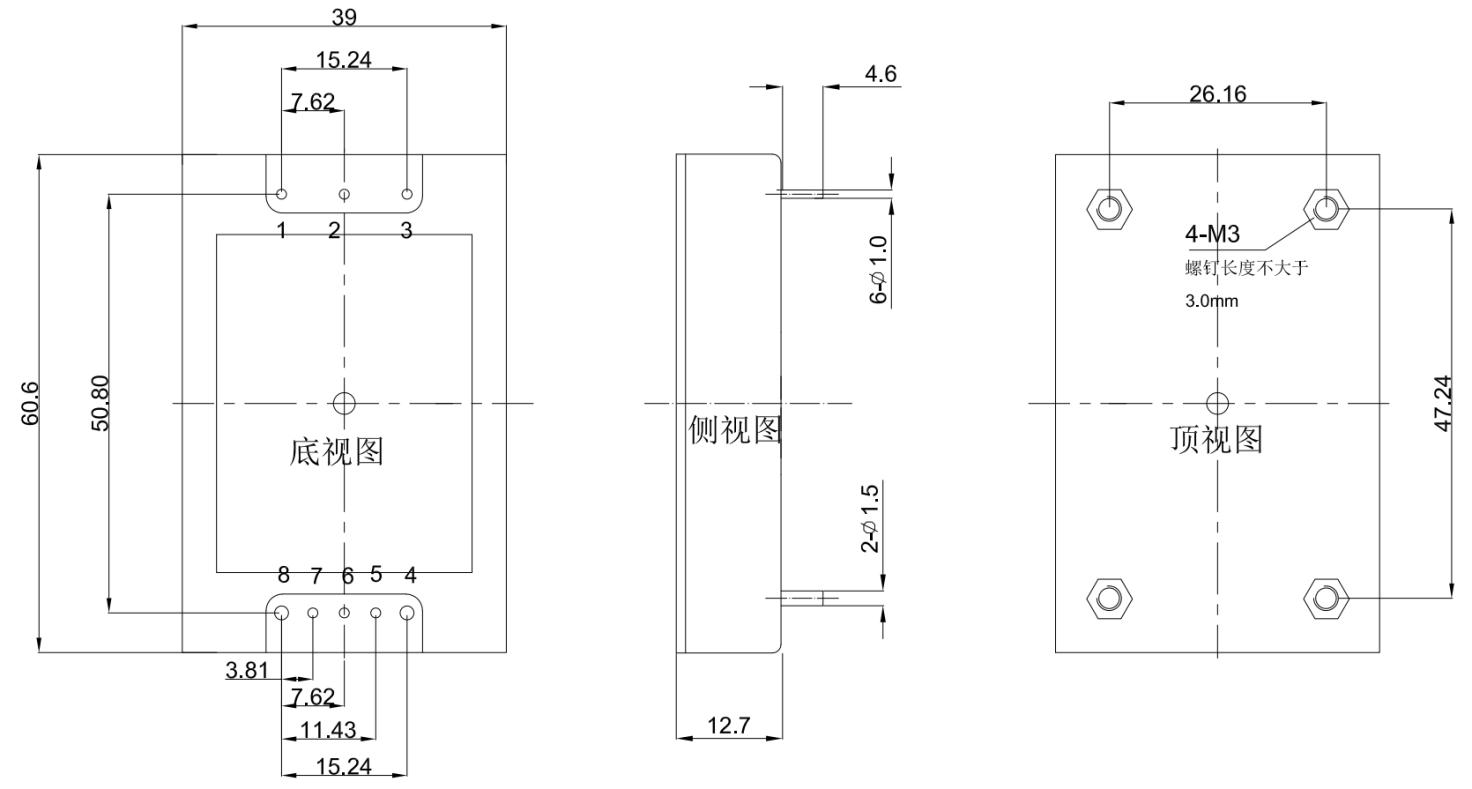

Mechanical dimensions drawing Unit: mm
1) Mechanical tolerance: x.x ± 0.5mm, x.xx ± 0.25mm
2) The diameters of pins 1-3 and 5-7 are 1mm, while the diameters of pins 4 and 8 are 1.5mm.
| Product Series | Package Size (mm) |
Power (W) |
Input Voltage | Output Voltage (Vdc) |
Maximum Output Current (A) |
Efficiency (%) |
Product Model | Specification Download |
|---|---|---|---|---|---|---|---|---|

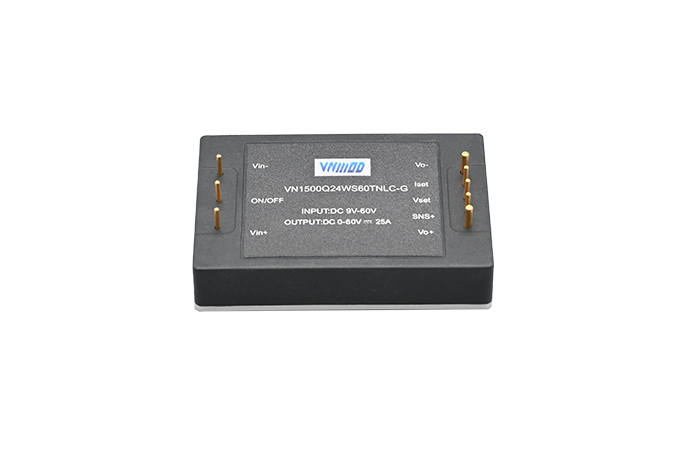

| Non-isolated DC-DC | 1/4 Brick | 1500 | 9-60 | 0-60 | 25 | 95 | VN1500Q24WS60xNLC-G |
