Case to All Pins Isolation：1500 Vdc
Output Voltage Trim
Parallel Current Sharing
Constant current output, constant current point Trim
Over Temperature Protection
Input Under Voltage Protection
Output Over Current / Short Circuit Protection
Note:

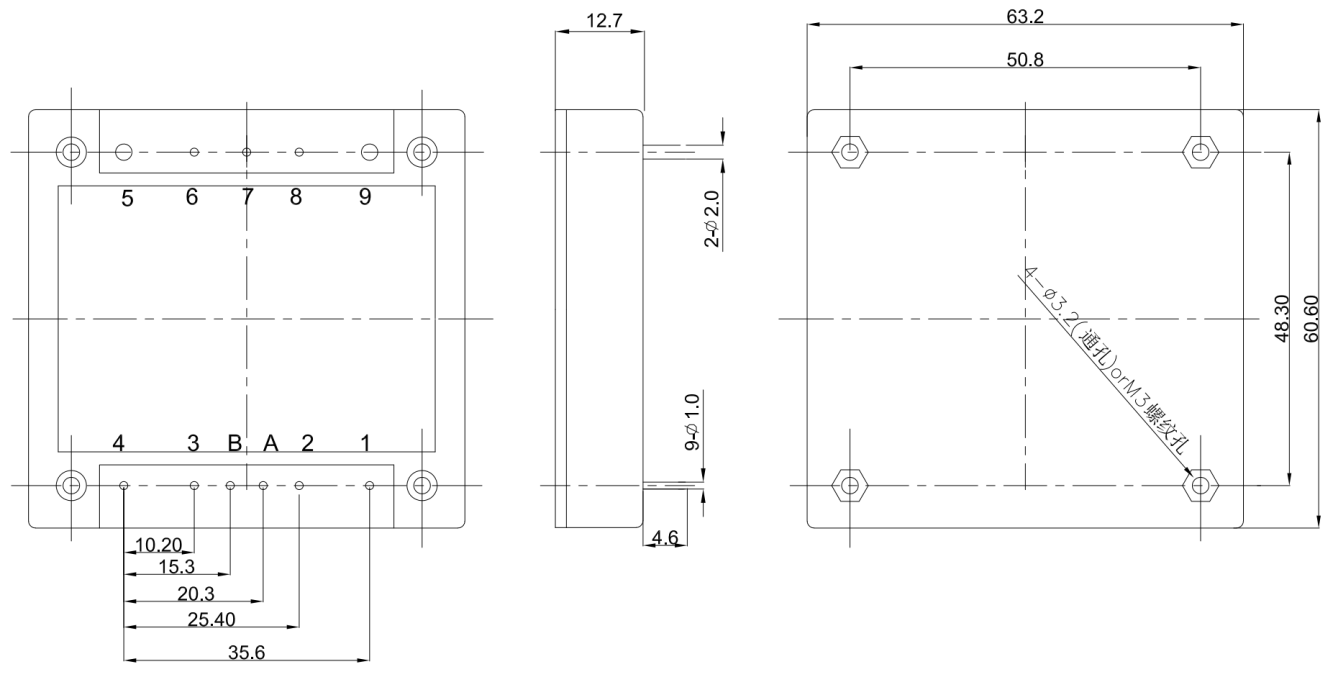

Pin 1-4, A, B, diameters of 1mm from 6 to 8, Pin 5, 9 diameters of 2mm
| Product Series | Package Size (mm) |
Power (W) |
Input voltage | Output voltage (Vdc) |
Maximum output current (A) |
efficiency (%) |
Product Model | Specification Download |
|---|---|---|---|---|---|---|---|---|

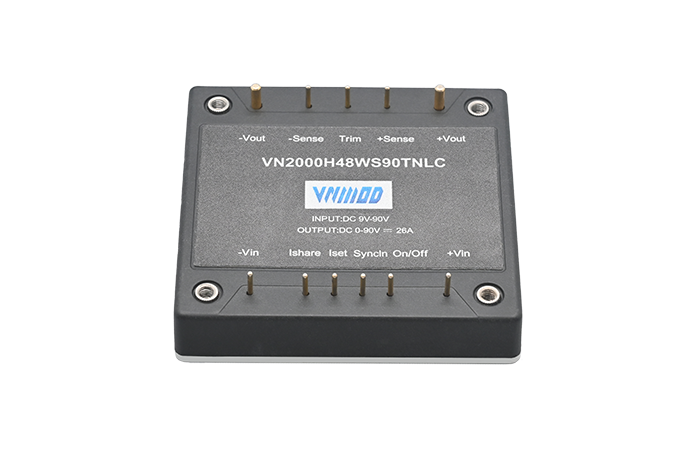

| Non-isolated DC-DC | 1/2 Brick | 2340 | 9-90 | 0-90 | 26 | 97 | VN2000H48WS90xNLC-G |
