Case to All Pins Isolation：1500 Vdc
Output Voltage Trim
Parallel Current Sharing
Constant current output, constant current point Trim
Over Temperature Protection
Input Under Voltage Protection
Output Over Current / Over Voltage / Short Circuit Protection

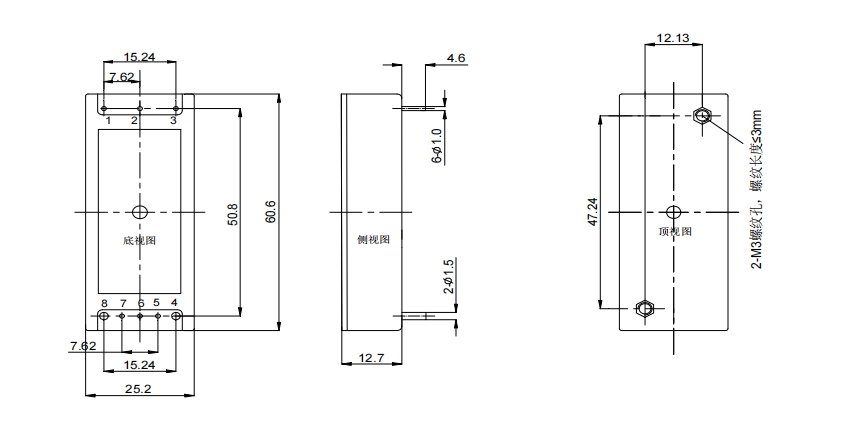

| Product Series | Package Size (mm) |
Power (W) |
Input Voltage | Output Voltage (Vdc) |
Maximum Output Current (A) |
Efficiency (%) |
Product Model | Specification Download |
|---|---|---|---|---|---|---|---|---|

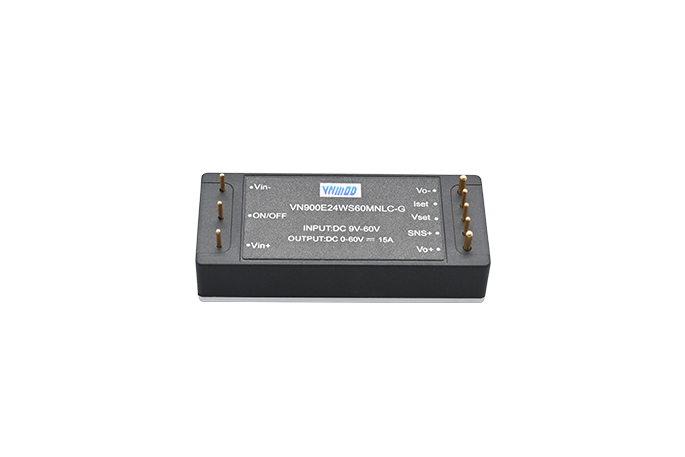

| Non-isolated DC-DC | 1/8 Brick | 900 | 9-60 | 0-60 | 15 | 94 | VN900E24WS60xNLC-G | |
| Non-isolated DC-DC | 1/8 Brick | 600 | 9-60 | 0-60 | 10 | 95.5 | VN600E24WS60xNLC-G |
