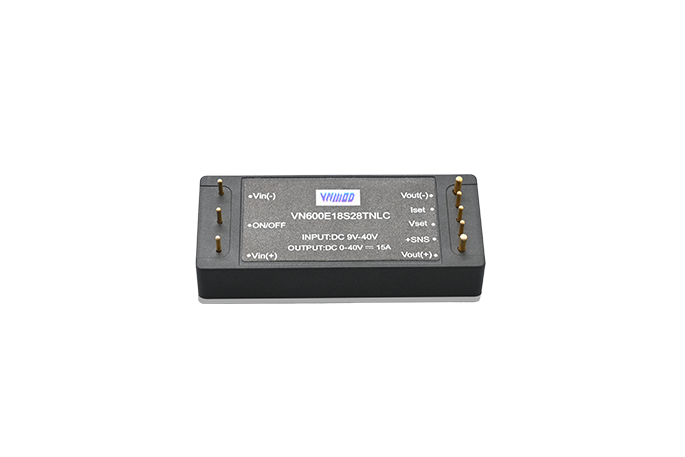

Case to All Pins Isolation：1500 Vdc
Output Voltage Trim
Enable/Disable Control
Constant current output, constant current point Trim
Over Temperature Protection
Input Under Voltage Protection
Output Over Current / Over Voltage / Short Circuit Protection

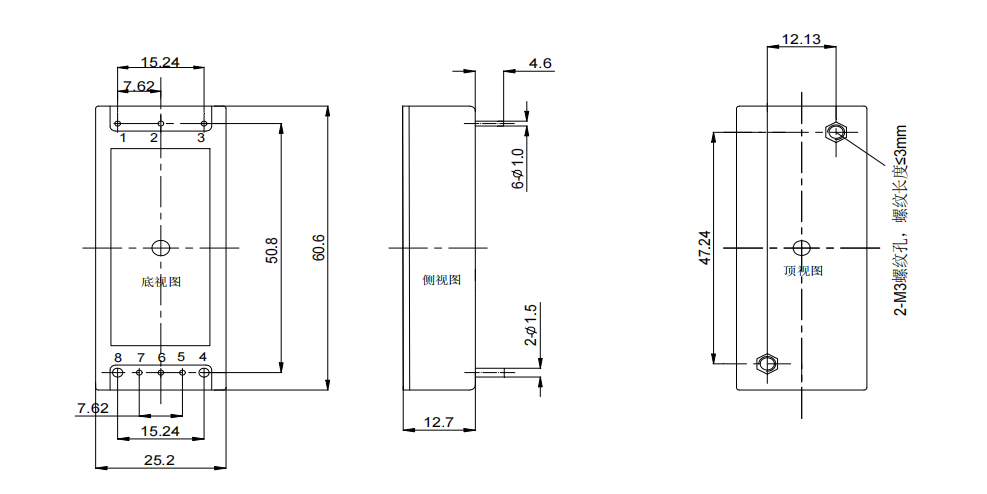

Mechanical dimension drawing
Unit: mm
1) Bottom plate material: Aluminum base plate + Plastic casing
2) Mechanical tolerances: x.x ± 0.5mm, x.xx ± 0.25mm
3) The diameters of pins 1-3 and 5-7 are 1mm, while the diameters of pins 4 and 8 are 1.5mm.
| Product Series | Package Size (mm) |
Power (W) |
Input voltage | Output voltage (Vdc) |
Maximum output current (A) |
efficiency (%) |
Product Model | Specification Download |
|---|---|---|---|---|---|---|---|---|
| Non-isolated DC-DC | 1/8 Brick | 600 | 9-40 | 0-40 | 15 | 96 | VN600E18S40xNLC-G |
