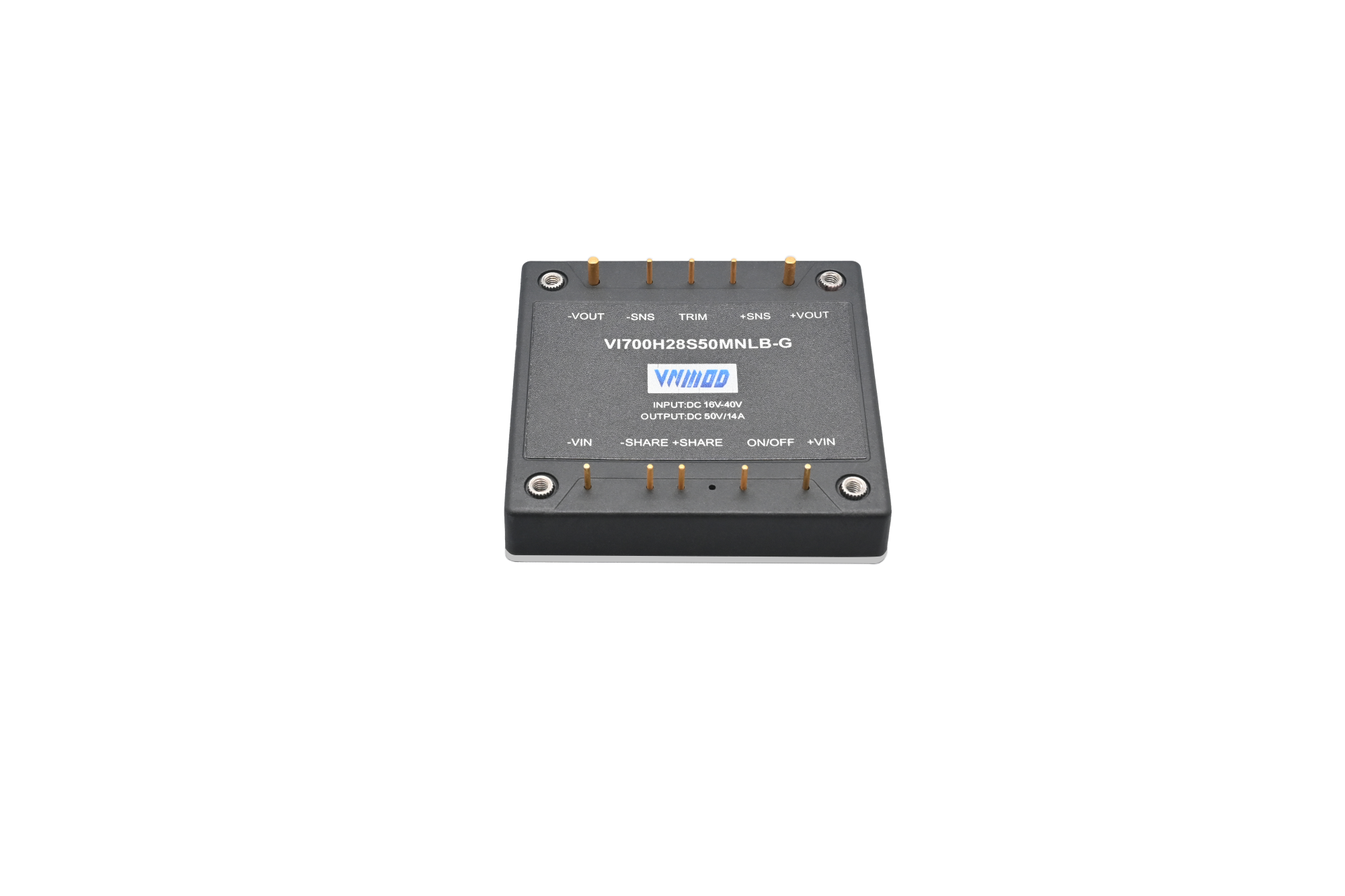

▌VI700H28S50MNLB-G
▌Product features
▶ Half-brick size：63.2*60.6*13.5mm | |
▶ Modules can be connected in parallel for current sharing. | |
Input Voltage Range | 16-40Vdc |
Output Voltage | 50Vdc |
Output Voltage Trim Range | -50% ~ +10% |
Output Power | 700W |
Efficiency (Full Load) | 95% |
Operating Temperature | -55℃ ~ +100℃ (Shell temperature) |
Input to Output Isolation | 1500Vdc |
Output ripple peak-to-peak | 300mV |
Max Output Capacitor | 3000μF |
▶ With remote control function ▶ Input undervoltage protection, output overcurrent protection, output short circuit protection, overtemperature protection | |
▌application area
☑ Airborne communication equipment
☑ Vehicle-mounted communication equipment
☑ Shipborne communication equipment
☑ Radio frequency power amplifier
