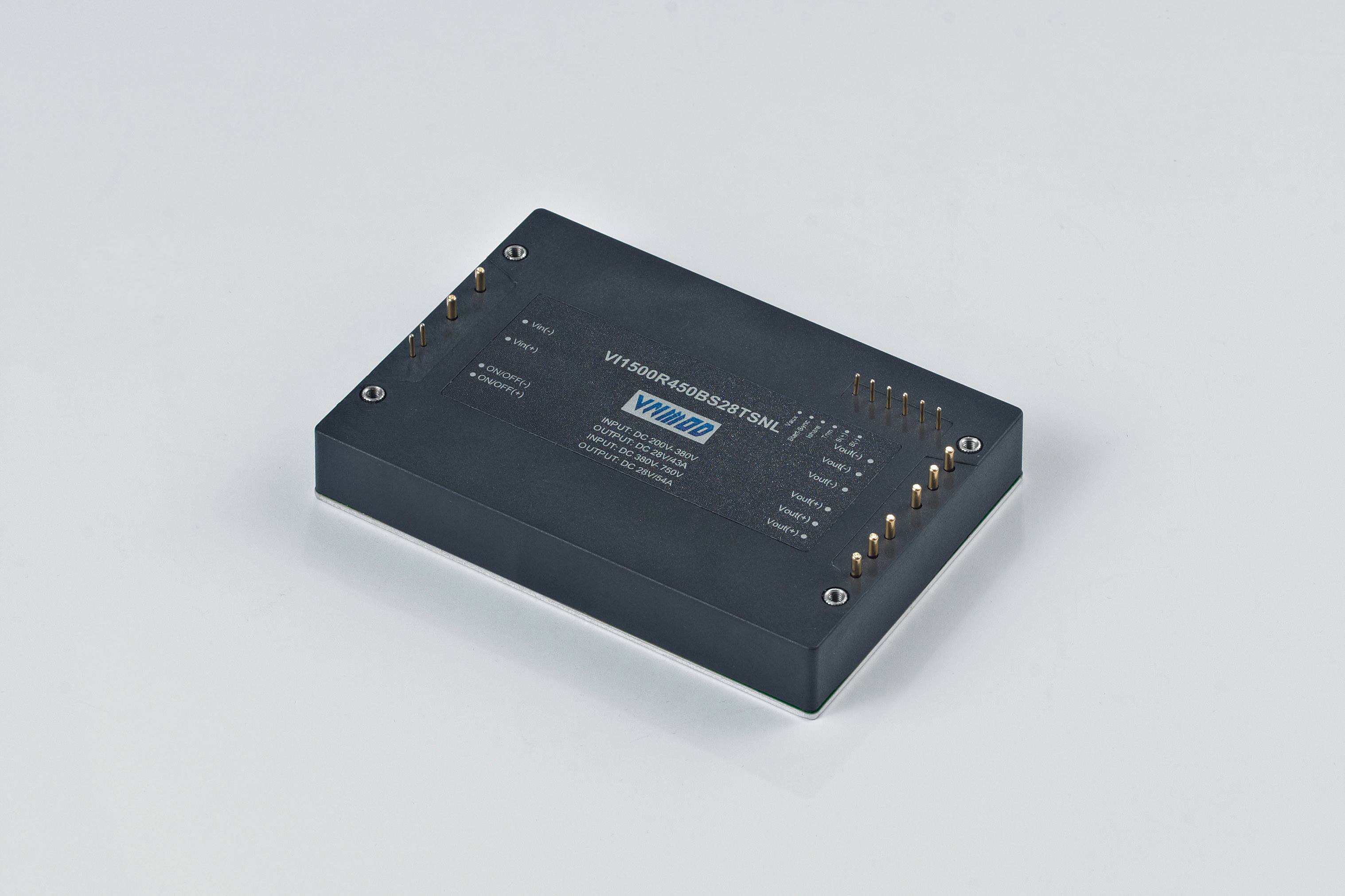

▌VI1500R450BS28TSNL
48Vout MPN：VI1500R450BS48TSNL
▌Product Features
▶ Ultra-wide input voltage range ▶ size：116.8*82*18.2mm ▶ Modules can be connected in parallel for current sharing. | ||
Input Voltage Range | 200-750V | |
Output Power | 1500W | |
Output Voltage Trim Range | -10% ~ +10% | |
Output Voltage | 28Vdc | 48Vdc |
Efficiency | 94.5% | 95% |
Operating Temperature | -40℃ ~ +90℃（case） | |
Input to Output Isolation | 4250Vdc | |
▶ Input under-voltage/over-voltage protection, output overcurrent and short circuit protection, output overvoltage protection, over-temperature protection | ||
▌application area
Convert high-voltage direct current to low-voltage direct current to supply power to components or equipment.
• Ground equipment
• Shipborne equipment
• Vehicle-mounted equipment
• New energy vehicles
