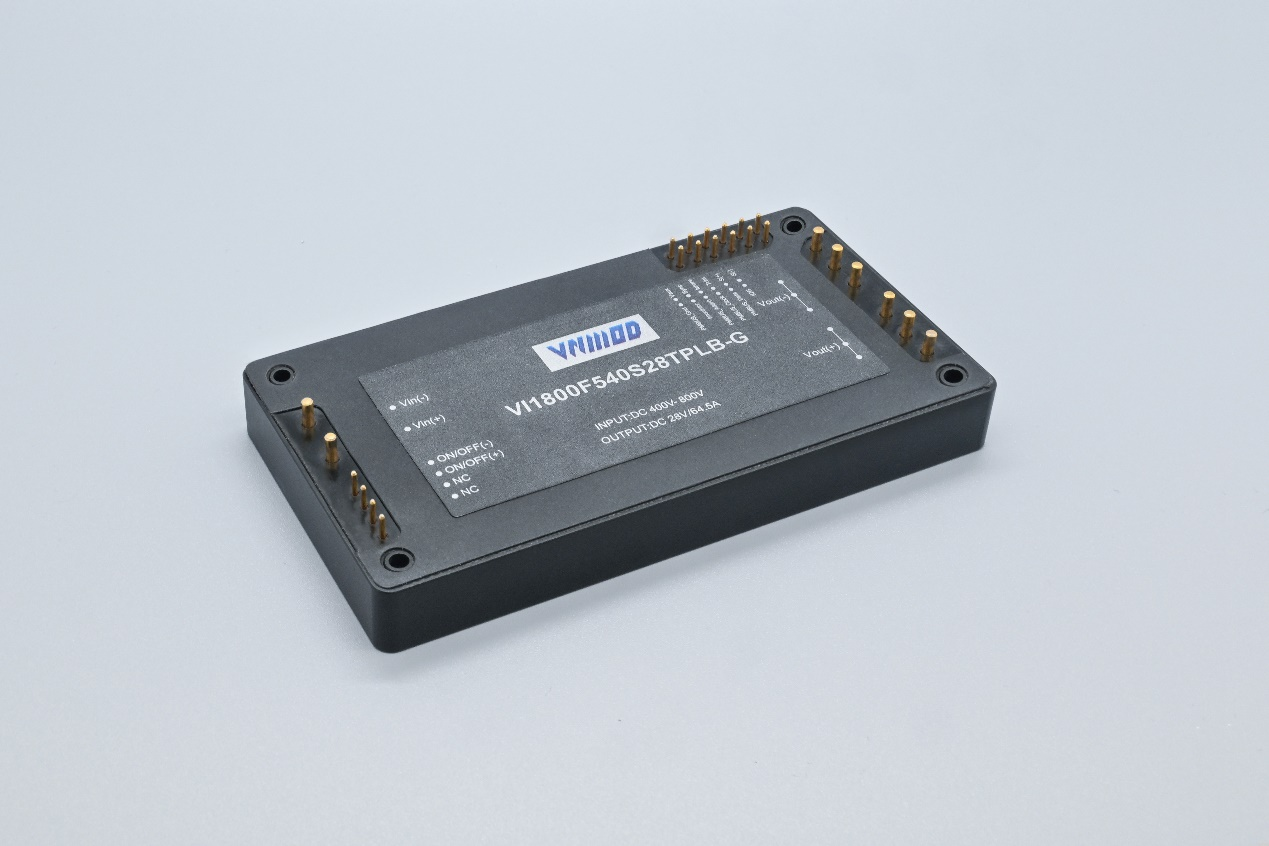

▌VI1800F540S28TPLB-G
▌Product Features
▶ Full brick size：119.1*63.2*13.5mm ▶ Modules can be connected in parallel for current sharing. | |
Input Voltage Range | 400-800Vdc |
Output Voltage | 28Vdc |
Output Voltage Trim Range | -20% ~ +10% |
Output Power | 1800W |
Efficiency (Full Load) | 95% |
Operating Temperature | -40℃ ~ +100℃ （Case） |
Input to Output Isolation | 3000Vdc |
▶ Having remote control functionality ▶ Fixed-frequency PWM control ▶ Input under-voltage/over-voltage protection, output overcurrent/constant current protection, output short-circuit protection, output overvoltage protection, over-temperature protection. | |
▌application area
The high-voltage direct current obtained after the front-end power conversion is further transformed into low-voltage direct current, which is then used to supply power to the components.
☑ Radar DC-DC power conversion；
☑ Stationary unmanned aerial vehicle DC-DC power conversion；
☑ Vehicle-mounted DC-DC power conversion;
☑ 540V ground equipment.
