A tethered drone is any unmanned aerial vehicle that is physically connected to a ground power station. The ground power station (also known as a drone station or tether station) converts alternating current into higher-power direct current, providing continuous power for the tethered drone, enabling it to remain in the air for several hours.

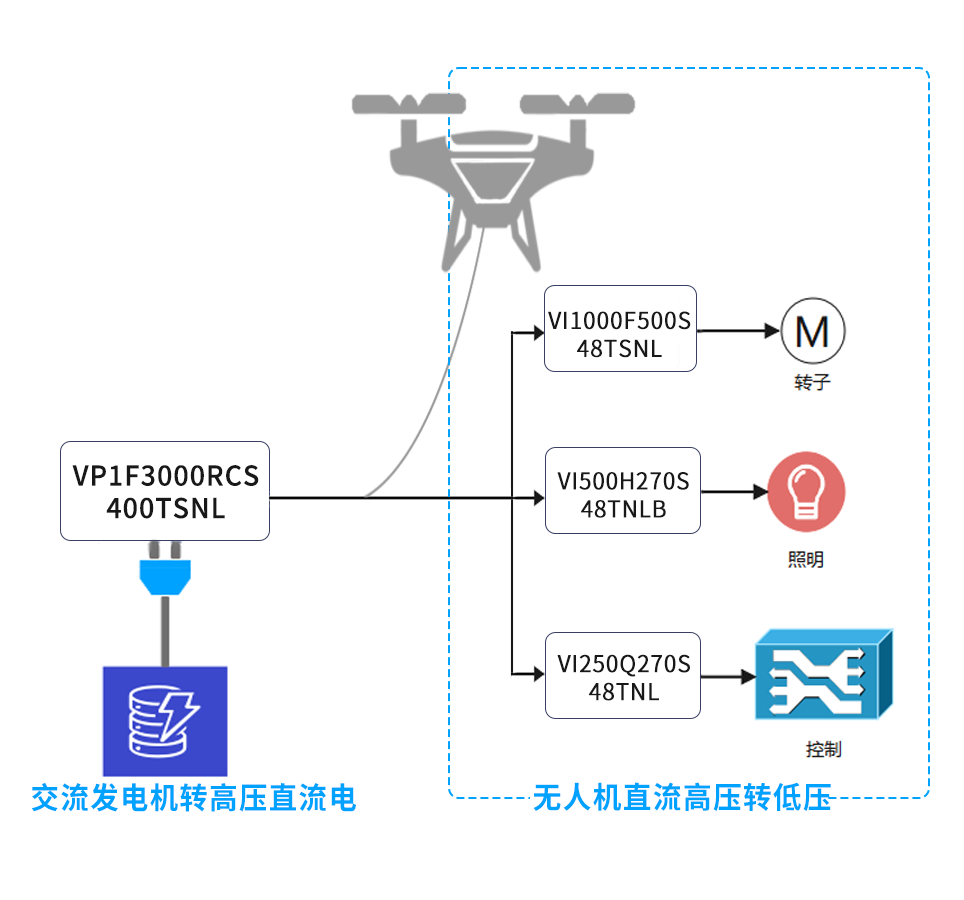

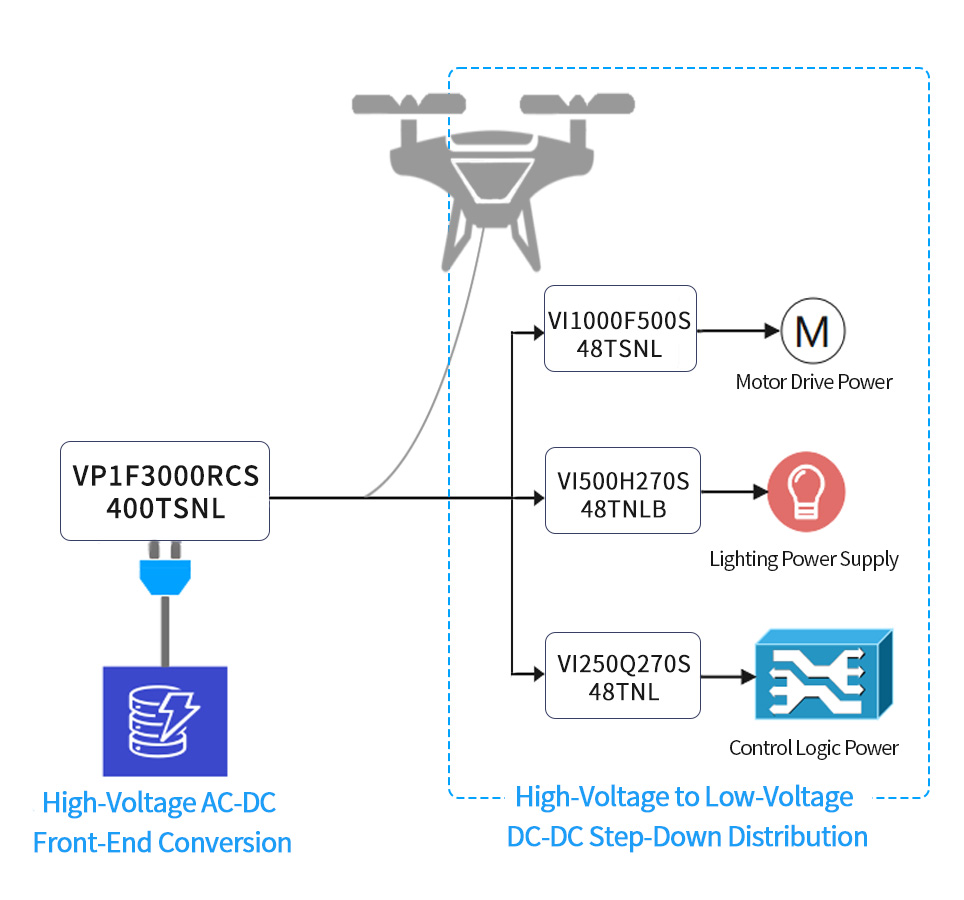

The ground power station for tethered drones needs to be mobile and lightweight. The VP1F3000RCS400TSNL PFC module converts alternating current into high-voltage direct current with an efficiency of up to 97% and an output power of up to 3000W. This module not only performs exceptionally well but also significantly reduces the overall weight of the solution, providing an excellent solution for customers. The DC-DC conversion of the tethered drone itself is also supported by VNMOD with corresponding products.
☑VNMOD Solution

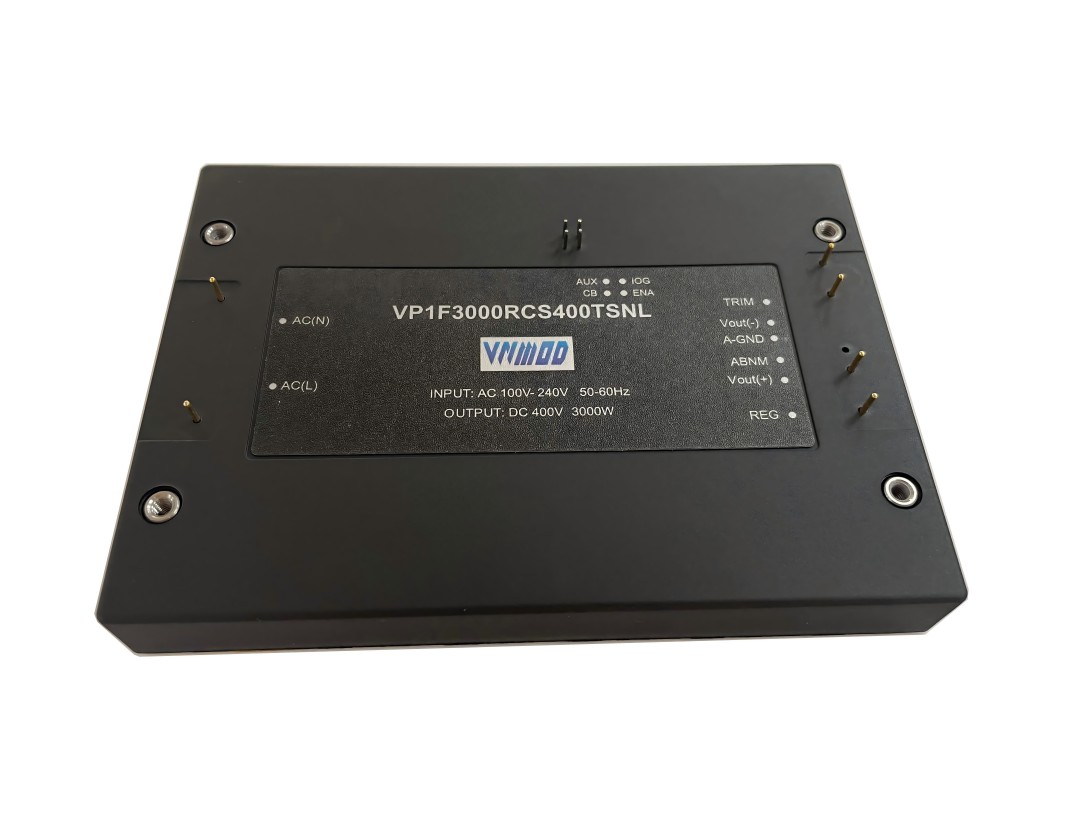

▌VP1F3000RCS400TSNL PFC module
▌Application fields
Wireless communication, data communication, network communication, servers, workstations, etc.
▌Product features
Rated output power | 90-114Vac:1000W |
| 115-175Vac:1500W | |
| 176-264Vac:3000W | |
Fully loaded PF value | 110Vac>0.98 |
| 220Vac>0.97 | |
Input voltage range | 90-264Vac (Or DC115-340V input) |
Typical efficiency | 97% |
Rated output Voltage / Current | 400V/7.5A |
Output voltage Adjustment range | 380V～430V (The output voltage is increased, the rated power remains the same; the output voltage is decreased, the maximum current remains unchanged.) |
Working temperature | -40℃～85℃ (Plate center temperature) |
Module weight | 320g |
1. Has input surge current protection function 2. Has auxiliary power output, 11.5V, 20mA 3. Has output enable function 4. Output voltage monitoring 5. Output overcurrent protection, output overvoltage protection, input overvoltage and undervoltage protection, over-temperature protection | |
▌Competitor Comparison
VP1F3000RCS400TSNL | A competing product | |
Input range | 176-264Vac | 170-264Vac |
Maximum power | 3000W ↑ | 1500W |
Output voltage | 380-430V | 360V |
Efficiency | 97% ↑ | 95% |
PF value | 110V 0.98 | 110V 0.98 |
220V 0.97 ↑ | 220V 0.95 | |
Others | • CB module current sharing bus • IOG input voltage good • PEG input inrush current limiting • ENA Power ON signal • AUX auxiliary voltage output • TRIM output voltage adjustment | • CB module current sharing bus • IOG input voltage good • PEG input inrush current limiting • ENA Power ON signal • AUX auxiliary voltage output |
