Isolation Voltage：3000 Vac
Enable/Disable Control
Over Temperature Protection
Input Under Voltage Protection
Output Over Current / Over Voltage / Short Circuit Protection

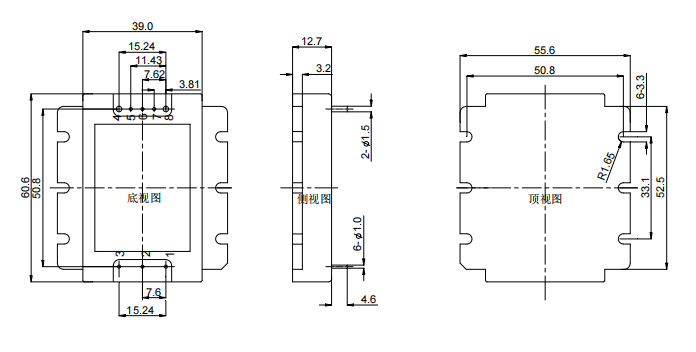

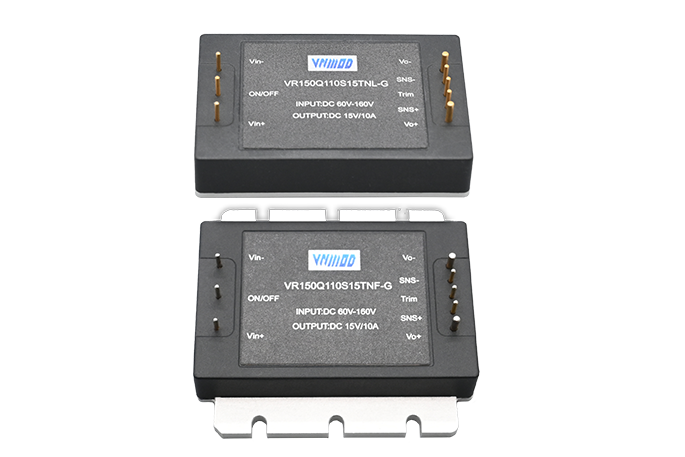

Installation methods are available:
① Flange (60.6×55.6×12.7mm)
② Threaded hole (60.6×39×12.7mm)
| Product Series | Package Size (mm) |
Power (W) |
Input voltage | Output voltage (Vdc) |
Maximum output current (A) |
efficiency (%) |
Product Model | Specification Download |
|---|---|---|---|---|---|---|---|---|

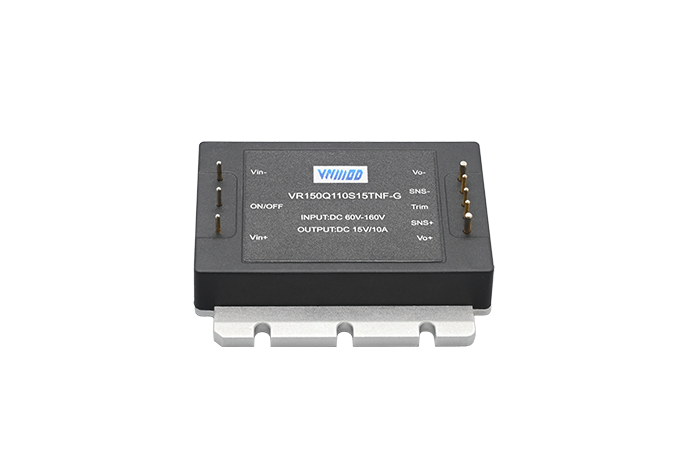

| Railway DC-DC | 1/4 Brick | 150 | 60-160 | 15 | 10 | 90 | VR150Q110S15TNF-G | |
| Railway DC-DC | 1/4 Brick | 150 | 60-160 | 24 | 6.25 | 90 | VR150Q110S24TNF-G |
