Isolation Voltage：3000 Vac
Enable/Disable Control
Over Temperature Protection
Input Under Voltage Protection
Output Over Current / Over Voltage / Short Circuit Protection

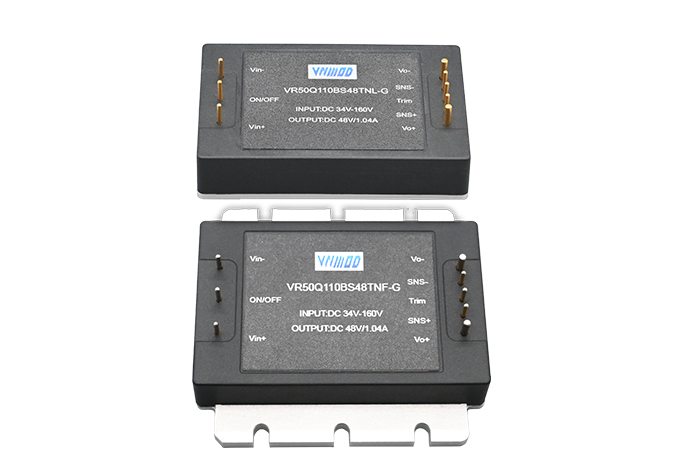

Installation methods are available:

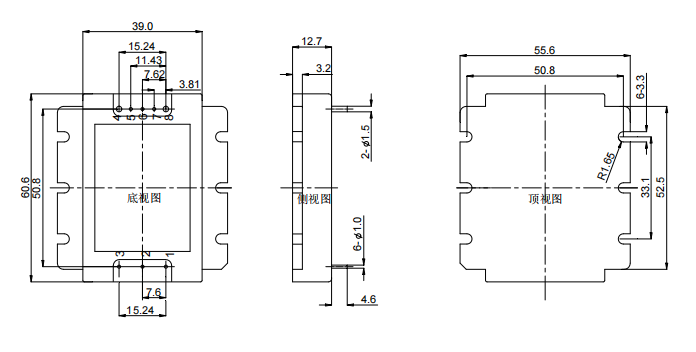

① Flange (60.6×55.6×12.7mm)
② Threaded hole (60.6×39×12.7mm)
| Product Series | Package Size (mm) |
Power (W) |
Input voltage | Output voltage (Vdc) |
Maximum output current (A) |
efficiency (%) |
Product Model | Specification Download |
|---|---|---|---|---|---|---|---|---|
| Railway DC-DC | 1/4 Brick | 50 | 34-160 | 5 | 10 | 88 | VR50Q110BS05TNF-G | |
| Railway DC-DC | 1/4 Brick | 50 | 34-160 | 12 | 4.17 | 88.5 | VR50Q110BS12TNF-G | |
| Railway DC-DC | 1/4 Brick | 50 | 34-160 | 15 | 3.33 | 89.5 | VR50Q110BS15TNF-G | |
| Railway DC-DC | 1/4 Brick | 50 | 34-160 | 24 | 2.08 | 89 | VR50Q110BS24TNF-G | |

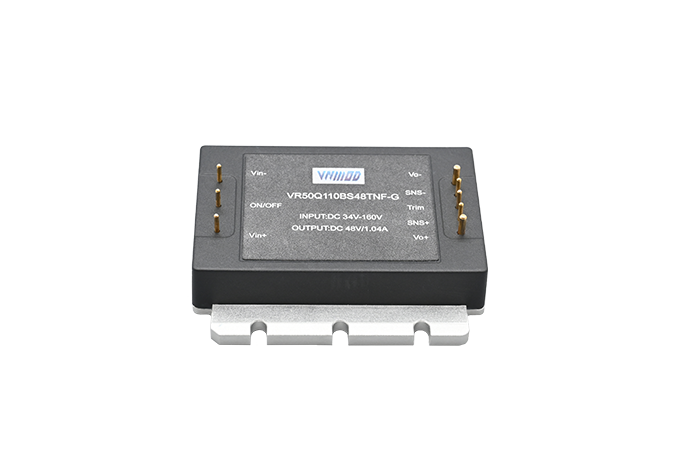

| Railway DC-DC | 1/4 Brick | 50 | 34-160 | 48 | 1.04 | 88.5 | VR50Q110BS48TNF-G |
