Input-to-output isolation voltage:3000 Vdc
Operating temperature range: -40°C to +100°C
PMBus communication interface
Over-temperature protection (OTP)
Input over-voltage / under-voltage protection
Output over-current protection, short-circuit protection, over-voltage protection

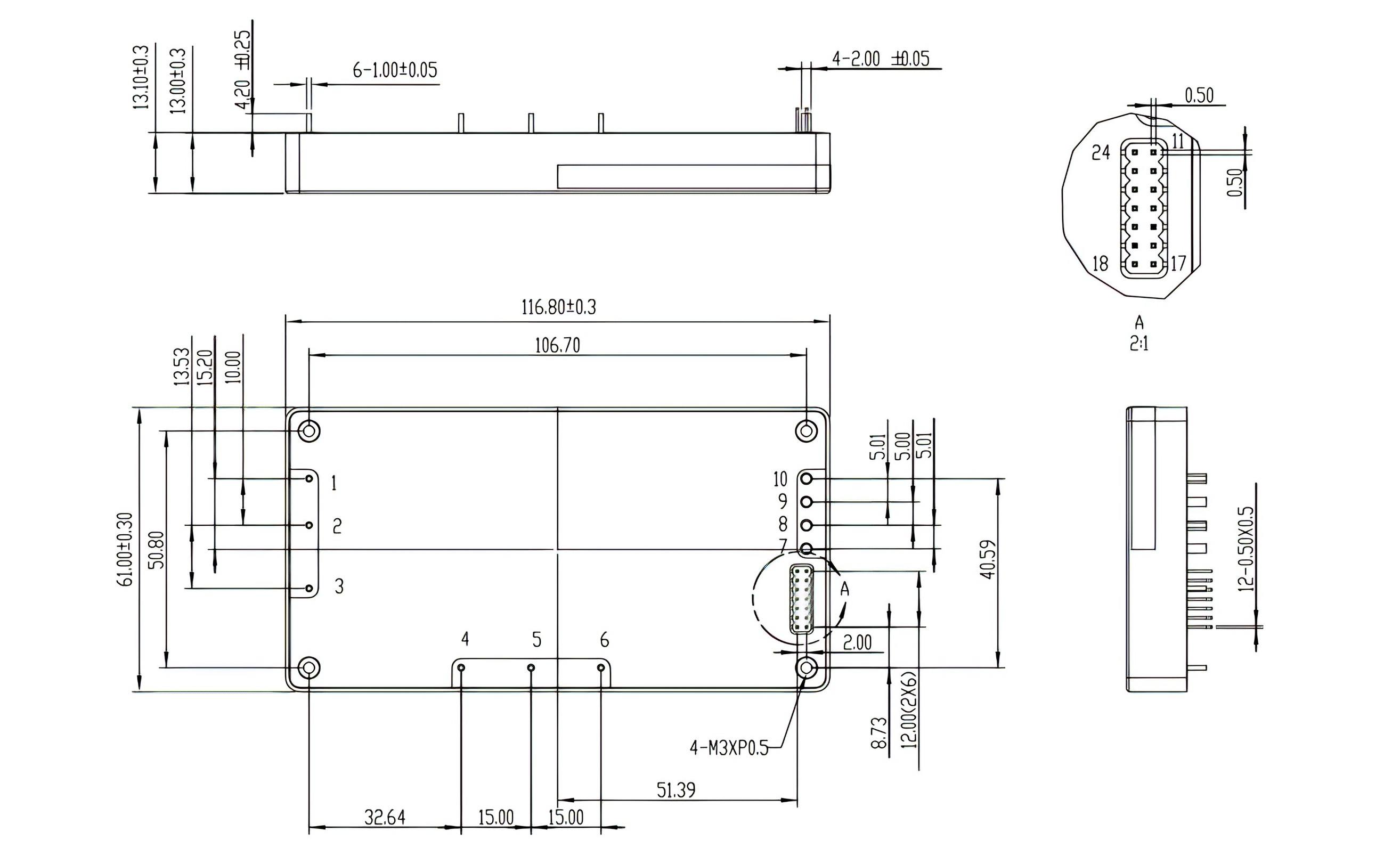

Notes:
1. The stud has M3 internal thread.
2. Pins 1 to 6 diameter: 1.00 ± 0.05 mm; boss diameter: 2.00 ± 0.05 mm.
3. Pins 7 to 10 diameter: 2.00 ± 0.05 mm; boss diameter: 3.00 ± 0.05 mm.
4. Pins 11 to 24 diameter: 0.5 ± 0.05 mm.
| Product Series | Package Size (mm) |
Power (W) |
Input voltage | Output voltage (Vdc) |
Maximum output current (A) |
efficiency (%) |
Product Model | Specification Download |
|---|---|---|---|---|---|---|---|---|

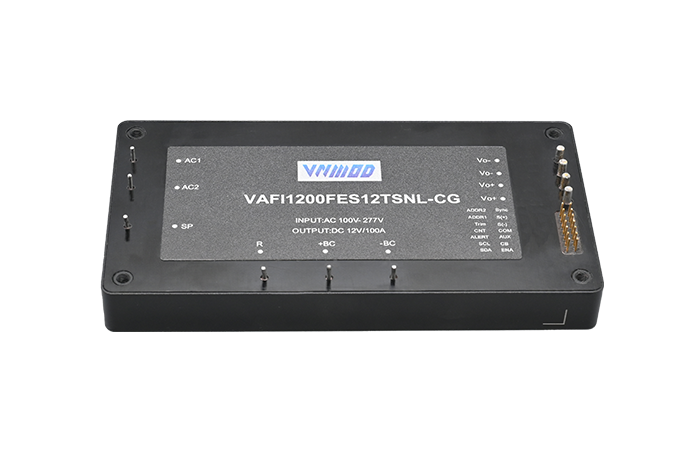

| VAFI | Full Brick | 1200 | 100-277Vac | 12 | 100 | 92 | VAFI1200FES12TSNL-CG | |
| VAFI | Full Brick | 1200 | 100-277Vac | 25 | 48 | 93 | VAFI1200FES25TSNL-CG | |
| VAFI | Full Brick | 1200 | 100-277Vac | 28 | 43 | 93 | VAFI1200FES28TSNL-CG | |
| VAFI | Full Brick | 1200 | 100-277Vac | 48 | 25 | 93 | VAFI1200FES48TSNL-CG |
