Input to Case Isolation Voltage：1500 Vac
Operating Temperature：-40 ℃〜85 ℃
Output Voltage Trim
Input Inrush Current Protection
Over Temperature Protection
Input Under / Over Voltage Protection
Output Over Current / Over Voltage Protection

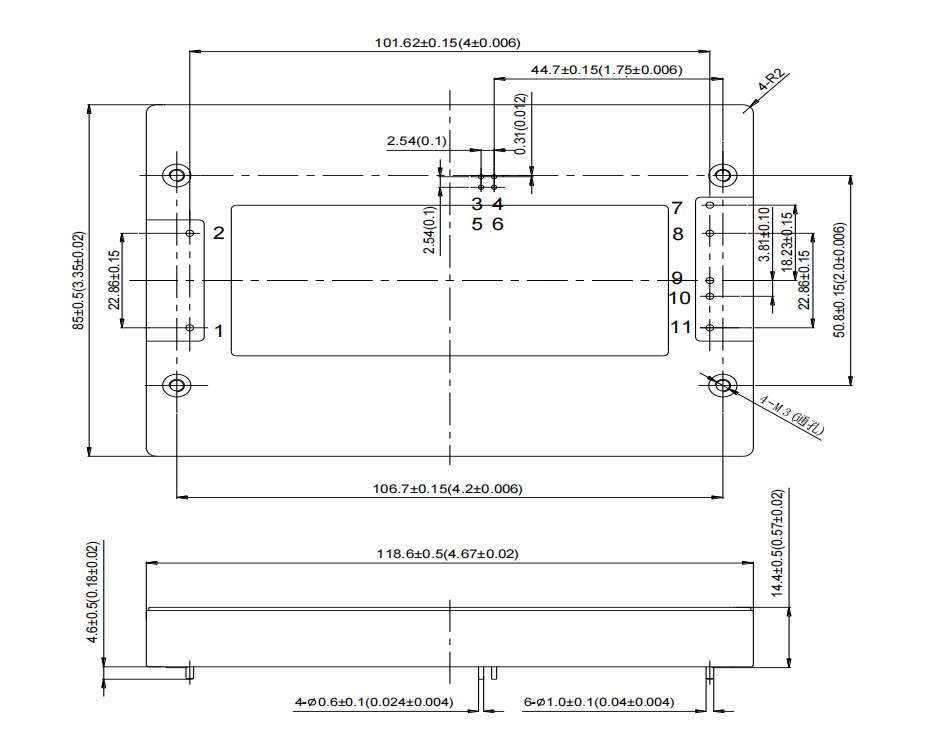

Note：
1. The screw stud is of M3 internal thread.
2. Except for the dimensions with marked tolerances, all other dimensions shall comply with the GB/T1804-2000 f-level standard.
3. The installation height of the module is 14.4 ± 0.5 mm, and the length of the pin protrusion is 4.6 ± 0.5 mm.
| Product Series | Package Size (mm) |
Power (W) |
Input voltage | Output voltage (Vdc) |
Maximum output current (A) |
efficiency (%) |
Product Model | Specification Download |
|---|---|---|---|---|---|---|---|---|

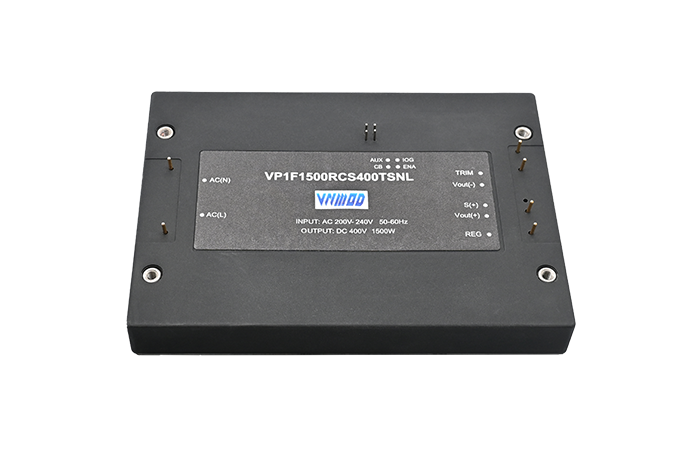

| PFC | 118.6*85*14.4 | 1500 | 90-264Vac | 400 | 3.75 | 97 | VP1F1500RCS400TSNL |
